Pirani Gauge - ULVAC GP-2002G
Product Specifications
Maker ULVAC
Model GP-2002G
Category Parts Related
Model year 2011
External Dimensions W96 D200 H48mm
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40621
Product Overview
ULVAC GP-2002G is a used Parts Related item available from ASKINDEX Korea. External dimensions: W96 D200 H48mm. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (ULVAC) and the same category (Parts Related).
Machine specifications
Measurement pressure range: 0.4 to 3000 Pa
Measurement location: 1
Measurement accuracy: ±15% 51~760Pa
±30% 10-1000 Pa (excluding 51-760 Pa)
±50% 0.4~3000Pa (excluding 10~1000Pa)

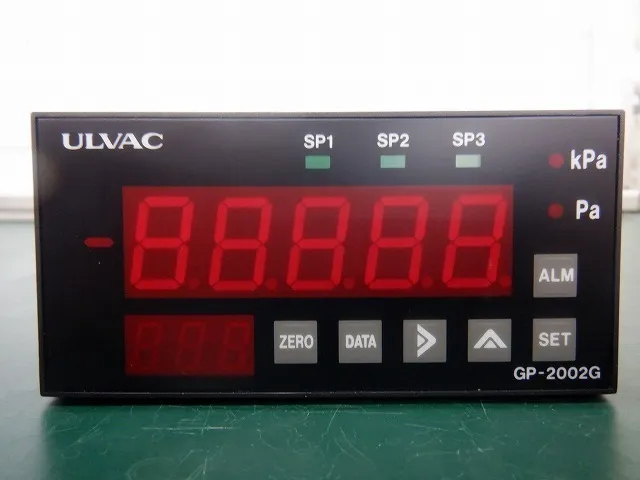

Display: Digital display: 4.5 digits (7-segment LED display)
Display sampling time: 100 msec
Measured output: DC 1.5~11.5V
Setpoint: 3-point (open collector) output
Power supply: DC24V
*No measuring probe unit included (display unit only)
Attached file

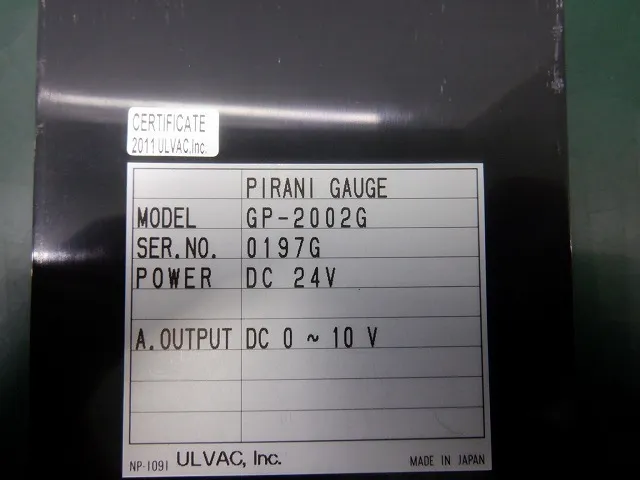

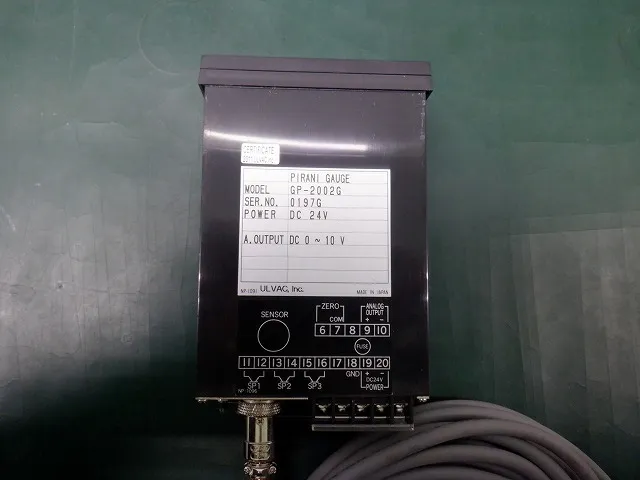

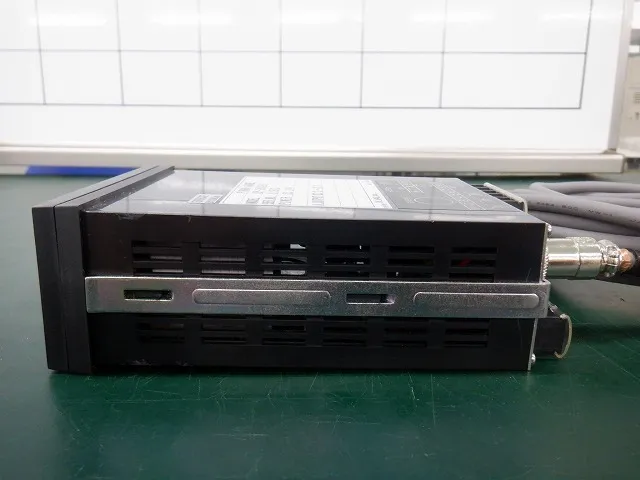

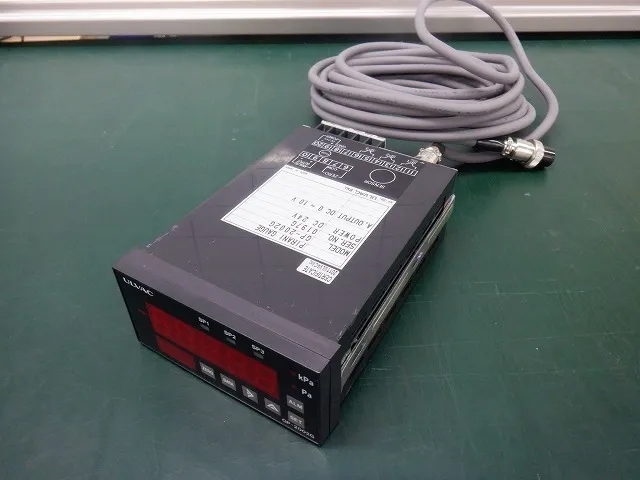

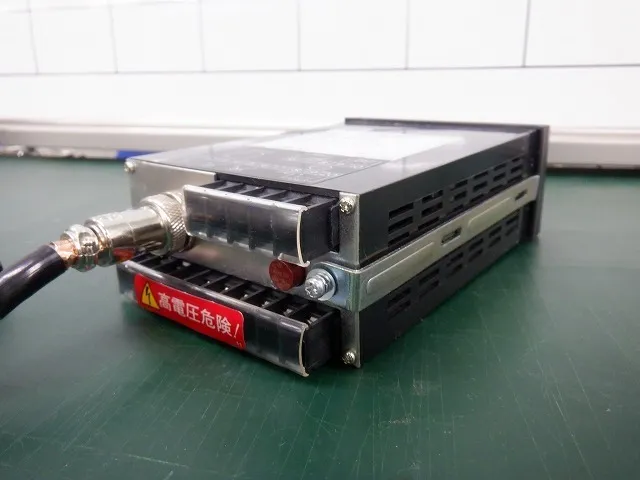

※ Click on the image below to zoom in.
