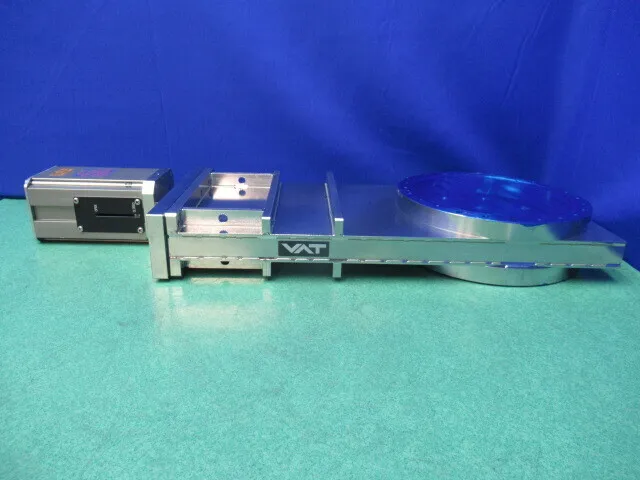

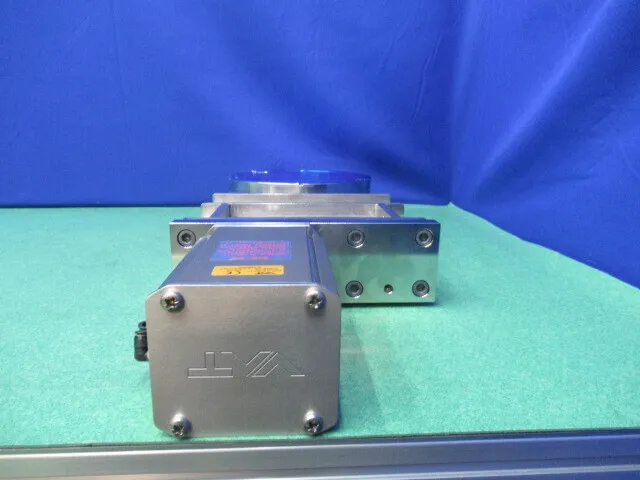

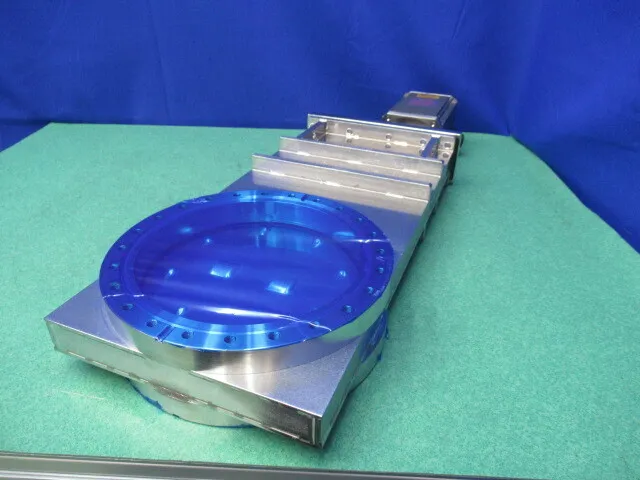

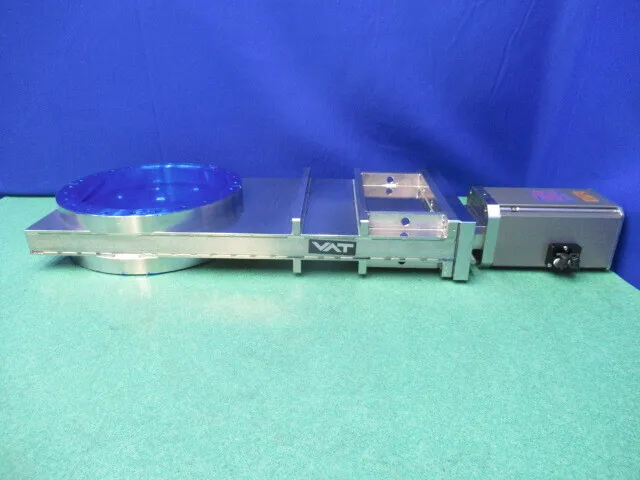

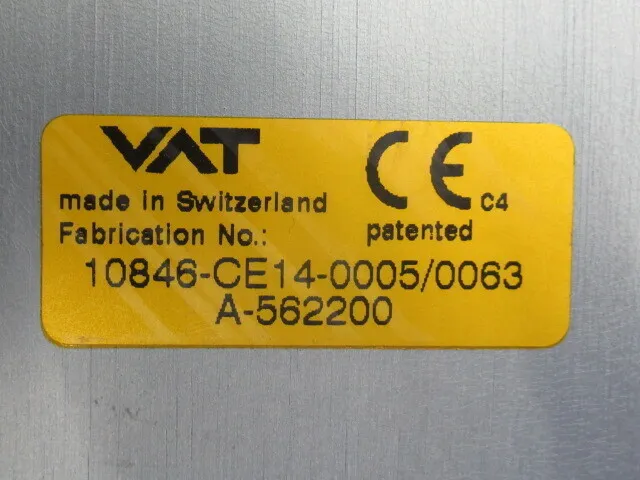

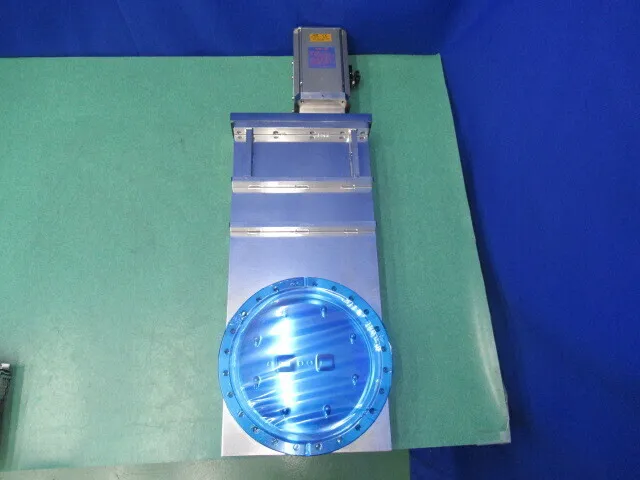

Gate valve - VAT 10846-CE14-0005/0063
Product Specifications
Maker VAT
Model 10846-CE14-0005/0063
Category Parts Related
External Dimensions W254 D751 H80
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40839
Product Overview
VAT 10846-CE14-0005/0063 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W254 D751 H80. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (VAT) and the same category (Parts Related).
Machine specifications
Actuators: Compression-operated, double-acting
Minimum pressure: 1 × 10^10 mbar
Maximum pressure: 1.6 bar (abs)
Possible differential pressure applied to the gate: <1.6 bar
Differential pressure when opening the valve: <0.03 bar
Cylinder capacity: 0.25L
Maximum compressed air pressure: 7 bar/102 psi
Minimum compressed air pressure: 4 bar/58 psi
