Sequencer (CPU with 48 input/output points) - Mitsubishi Electric FX2N-48MT-D
Product Specifications
Maker Mitsubishi Electric
Model FX2N-48MT-D
Category Parts Related
External Dimensions W181 D90 H86
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40902
Product Overview
Mitsubishi Electric FX2N-48MT-D is a used Parts Related item available from ASKINDEX Korea. External dimensions: W181 D90 H86. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).
Machine specifications
Input voltage: DC24V
Power consumption: 30W max
Input/Output points: 24 points each (48 points total)
*When using in conjunction with expansion units, the total score is 256 points or less.
Input specifications: DC24V sink NPN open collector transistor, photocoupler isolation, LED lights up when input is ON.
Output specifications: Transistor/sink output, external power supply DC 5-30V, photocoupler isolation, LED lights up when photocoupler is driven.
Program memory: 16,000 steps max
Attached file

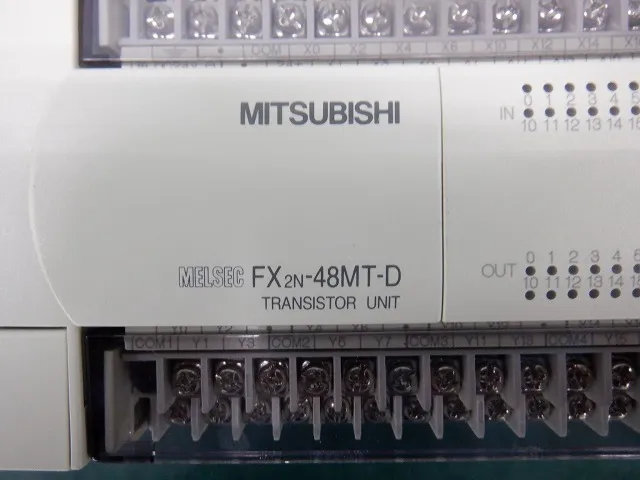

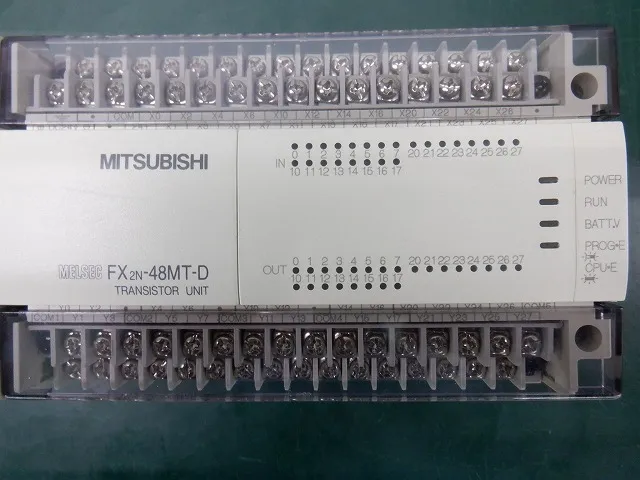

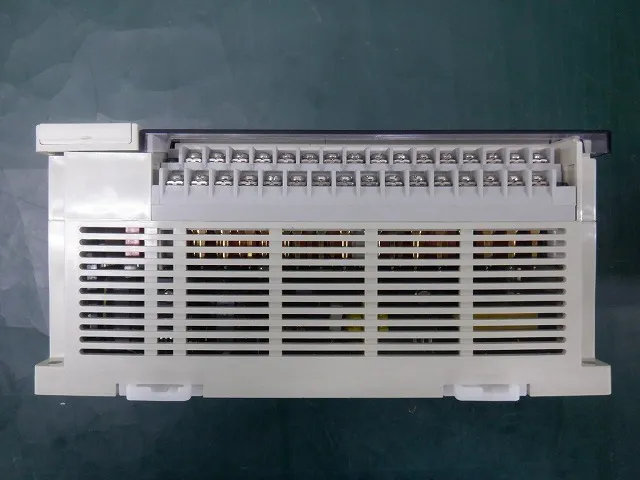

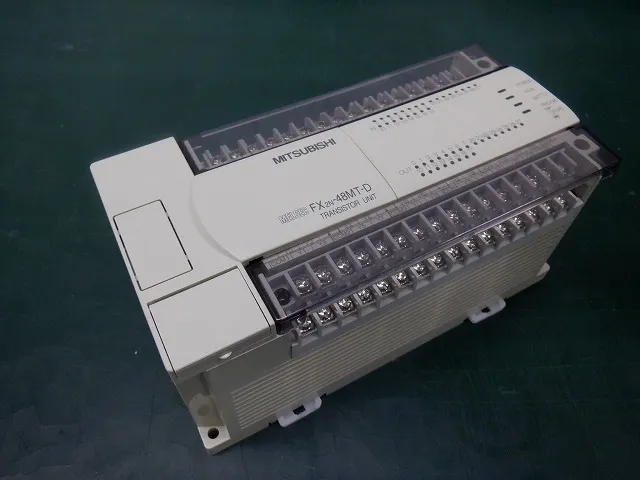

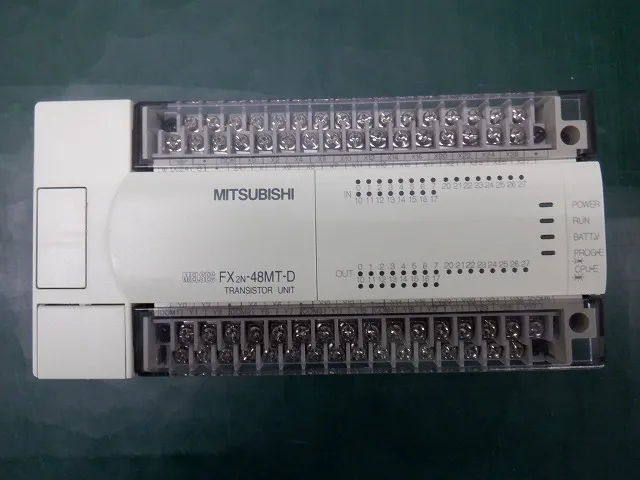

※ Click on the image below to zoom in.
