Sequencer (pulse output block) - Mitsubishi Electric FX2N-1PG
Product Specifications
Maker Mitsubishi Electric
Model FX2N-1PG
Category Parts Related
External Dimensions W42 D89 H86
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40904
Product Overview
Mitsubishi Electric FX2N-1PG is a used Parts Related item available from ASKINDEX Korea. External dimensions: W42 D89 H86. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).
Machine specifications
Applicable PLCs: FX2N, FX3U, FX2NC, FX3UC
Number of input/output points occupied: 8 sequencer input/output points occupied
Pulse output method: Open collector method
Pulse output configuration: pulse train + direction, forward and reverse pulse train
Number of control axes: 1 independent axis
Maximum frequency: 100kHz
Acceleration/deceleration processing: Automatic trapezoidal acceleration/deceleration
Control unit: pulse, um
Location data: 1 point (set in the program)
Power supply voltage: DC 5V 55mA (internal power supply from the PLC)
DC24V ±10% 40mA (external power supply)
Control inputs: 3 points (STOP, DOG, PG0)
Attached file

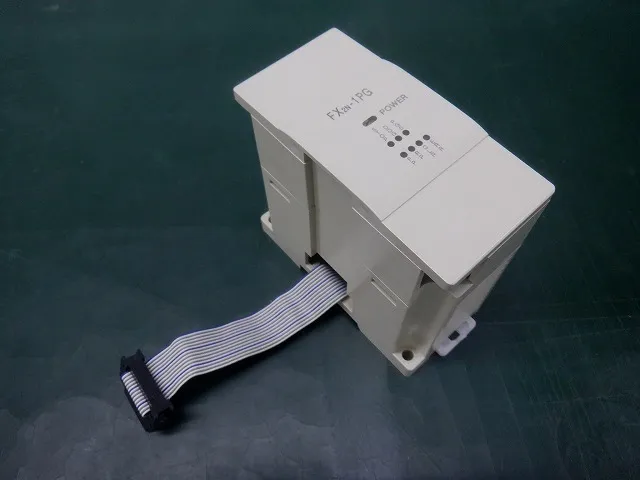

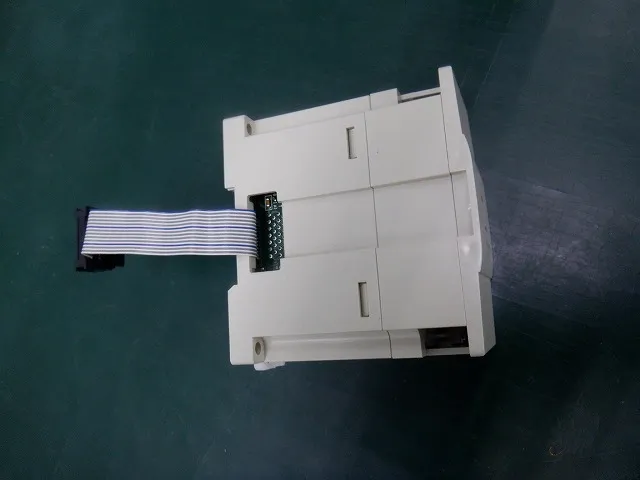

※ Click on the image below to zoom in.
