Sequencer (D/A converter unit) - Mitsubishi Electric Q64DAN
Product Specifications
Maker Mitsubishi Electric
Model Q64DAN
Category Parts Related
External Dimensions W27 D112 H98
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40909
Product Overview
Mitsubishi Electric Q64DAN is a used Parts Related item available from ASKINDEX Korea. External dimensions: W27 D112 H98. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).
Machine specifications
Number of analog output points: 4 (4 channels)
Digital input: Normal resolution mode: -4096 to +4095, High resolution mode: -12288 to +12287, -16384 to +16383
Analog output: Voltage DC -10 to +10V (External load resistance: 1kΩ to 1MΩ)
Current DC 0~20mA (External load resistance: 0~600Ω)
Resolution: Voltage output 0-5V (normal 1.25mV, high resolution 0.416mV)
1 to 5V (normal 1.0mV, high resolution 0.333mV)
-10~10V (normal 2.5mV, high resolution 0.625mV)
Accuracy: Within ±0.1% at an ambient temperature of 25±5℃
D/A conversion speed: 80usec/channel

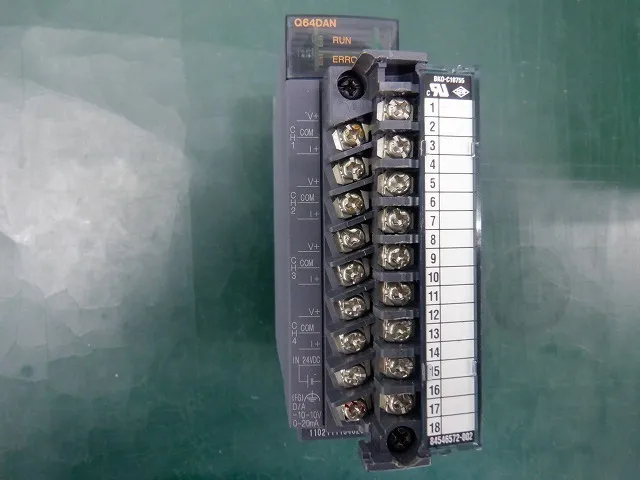

External wiring connection: M3 terminal block
Attached file

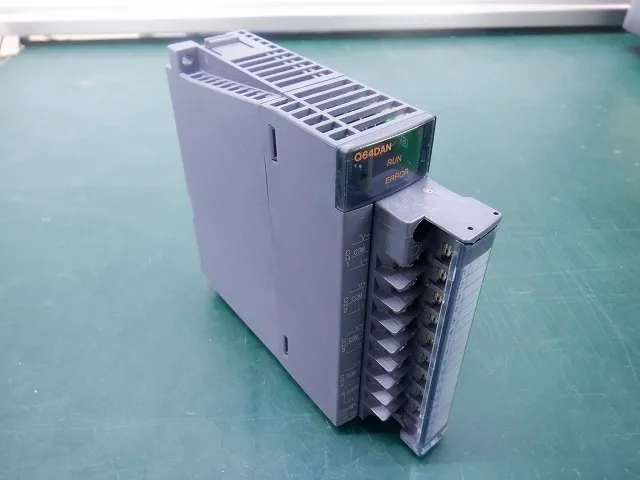

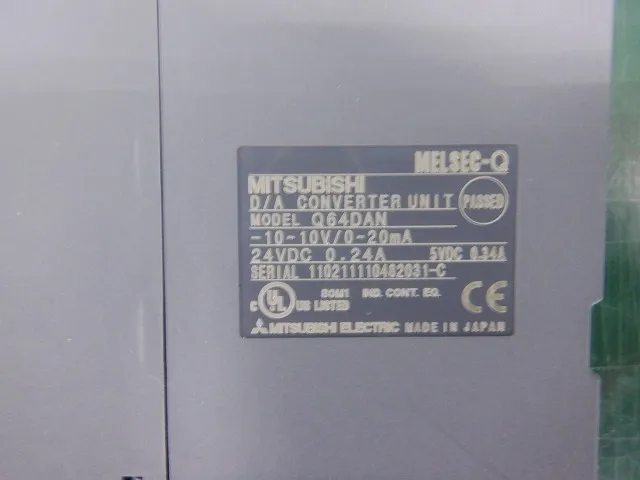

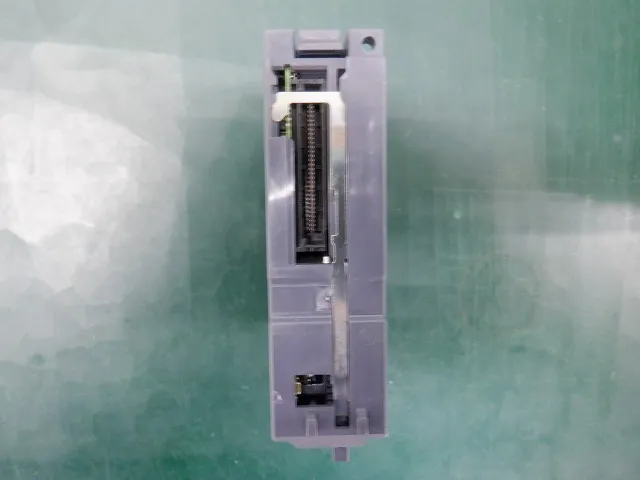

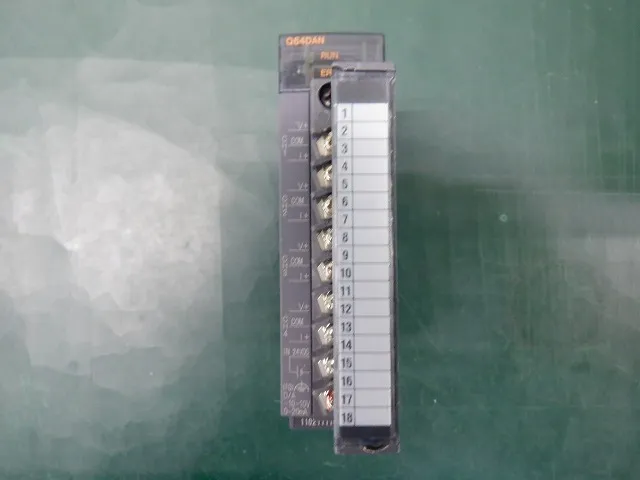

※ Click on the image below to zoom in.
