Sequencer (A/D converter unit) - Mitsubishi Electric Q64AD
Product Specifications
Maker Mitsubishi Electric
Model Q64AD
Category Parts Related
External Dimensions W27 D92 H98
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40910
Product Overview
Mitsubishi Electric Q64AD is a used Parts Related item available from ASKINDEX Korea. External dimensions: W27 D92 H98. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).
Machine specifications
Number of analog inputs: 4 (4 channels)
Analog input: Voltage: DC -10V to +10V (Input resistance: 1MΩ)
Current DC 0-20mA (Input resistance: 250Ω)
Digital output: Normal resolution mode: -4096 to +4095, High resolution mode: -12288 to +12287, -16384 to +16383
Resolution: Voltage input 0~10V (normal 2.5mV, high resolution 0.625mV)
Voltage input 0~5V (normal 1.25mV, high resolution 0.416mV)
Voltage input 1~5V (typically 1.0mV, high resolution 0.333mV)
Voltage input -10V to 10V (typically 2.5mV, high resolution 0.625mV)
Attached file

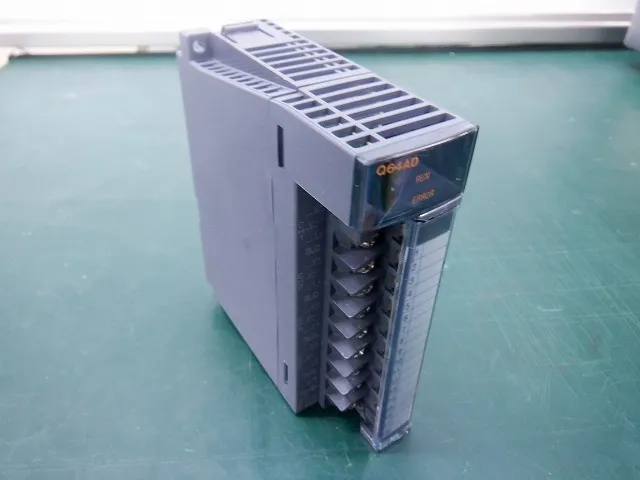

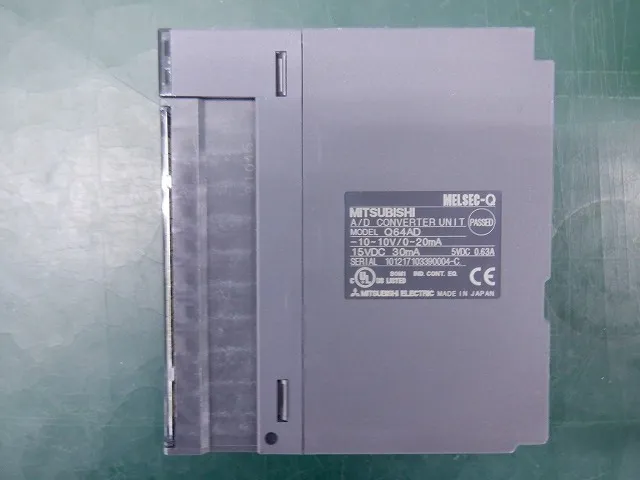

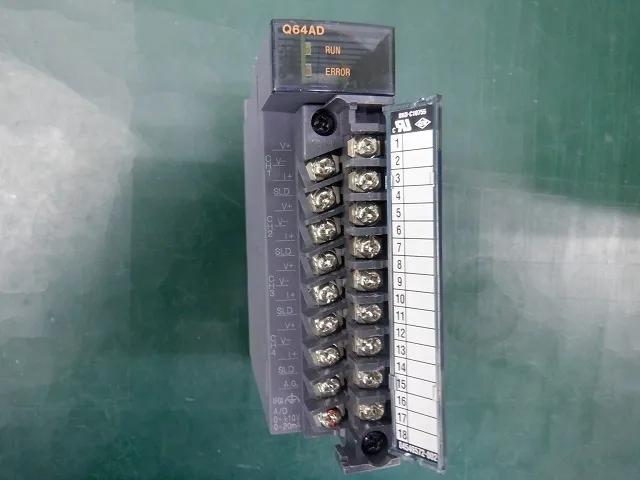

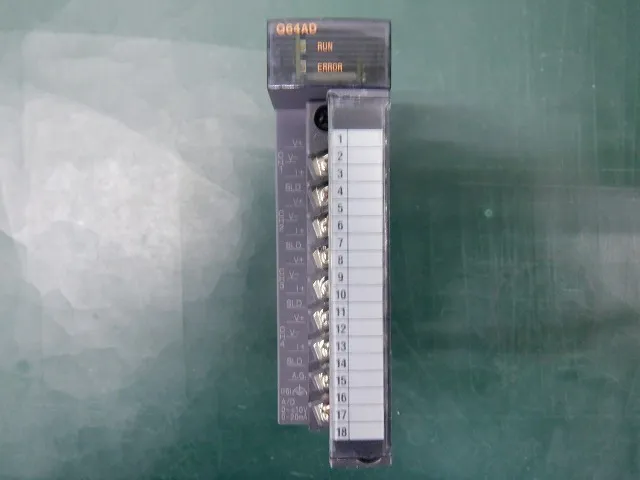

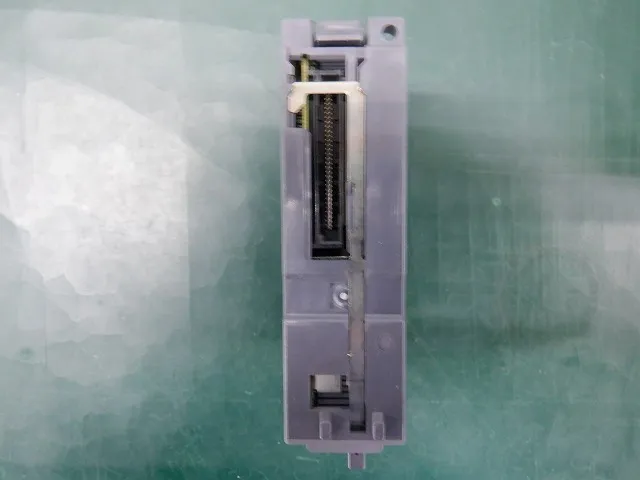

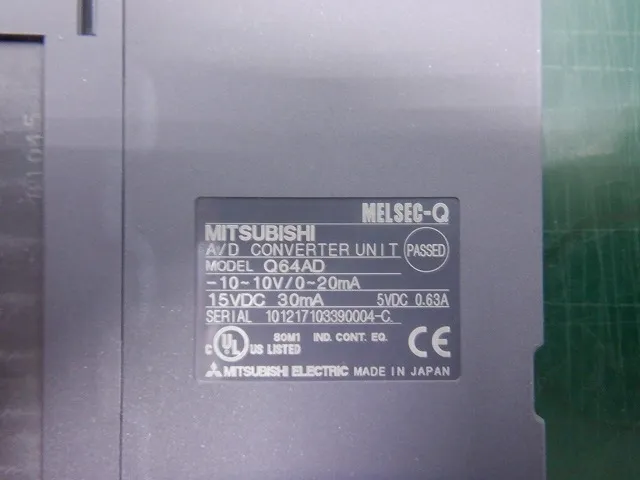

※ Click on the image below to zoom in.
