Sequencer (64 input/output units) - Mitsubishi Electric QH42P
Product Specifications
Maker Mitsubishi Electric
Model QH42P
Category Parts Related
External Dimensions W27 D92 H98
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40911
Machine specifications
Input: DC input (positive common type) 32 points
Rated input voltage: DC24V
Rated input current: Approximately 4mA
Input common configuration: 32 points, 1 common
Output: 32 transistor outputs (sink type)
Rated load voltage: DC 12-24V
Maximum load current: 0.1A/point, 2A/common
Surge killer: Zener diode
Output common configuration: 32 points, 1 common
External wiring connection method: 40-pin connector x 2
Attached file
Product Overview
Mitsubishi Electric QH42P is a used Parts Related item handled by ASKINDEX Korea. External dimensions: W27 D92 H98. This listing has sold, but you can ask about restock or a similar unit, and request a quote. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).

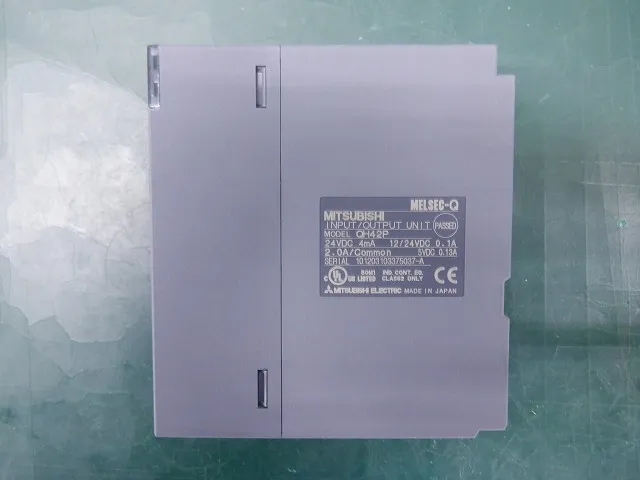

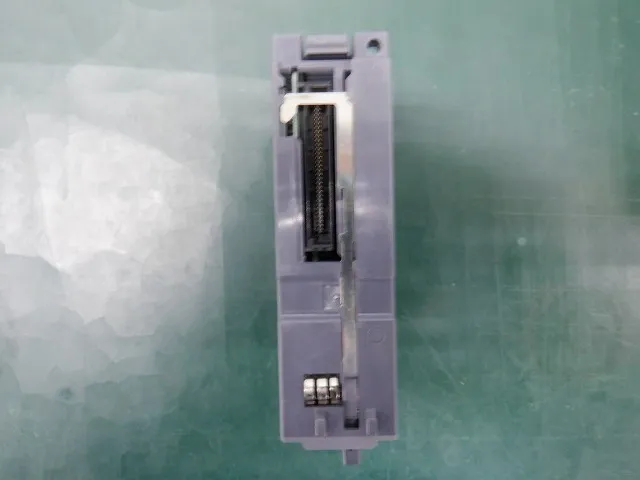

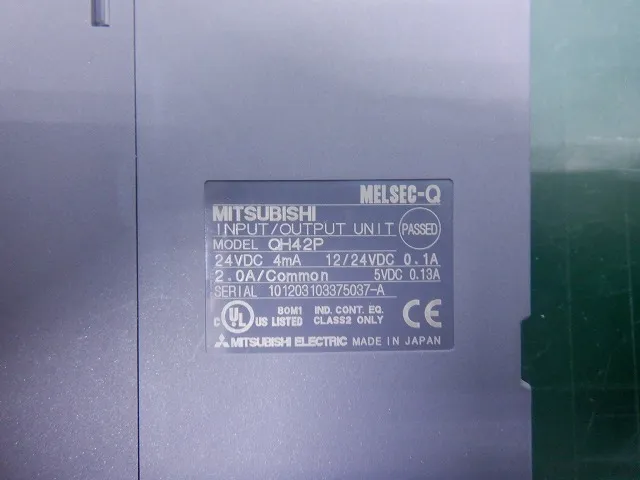

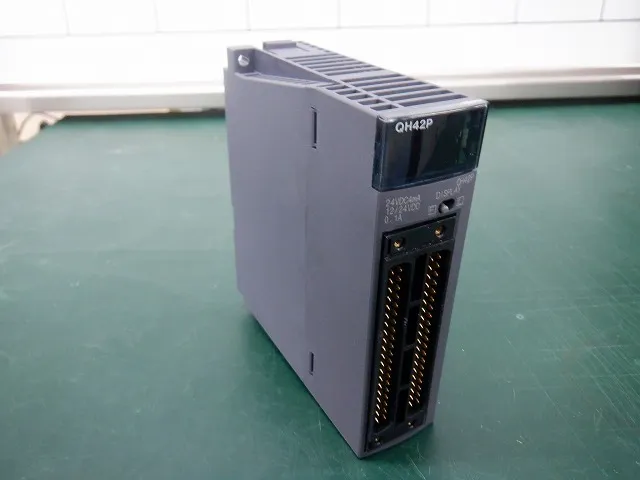

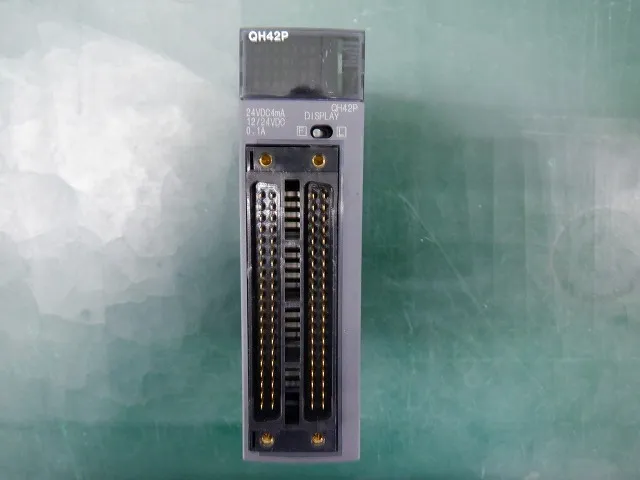

※ Click on the image below to zoom in.
