Sequencer (64 input/output units) - Mitsubishi Electric QH42P
Product Specifications
Maker Mitsubishi Electric
Model QH42P
Category Parts Related
External Dimensions W 27 D 92 H 98
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40922
Product Overview
Mitsubishi Electric QH42P is a used Parts Related item available from ASKINDEX Korea. External dimensions: W 27 D 92 H 98. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).
Machine specifications
Input: DC input (positive common type) 32 points
Rated input voltage: DC24V
Rated input current: Approximately 4mA
Input common configuration: 32 points, 1 common
Output: 32 transistor outputs (sink type)
Rated load voltage: DC 12-24V
Maximum load current: 0.1A/point, 2A/common
Surge killer: Zener diode
Output common configuration: 32 points, 1 common
External wiring connection method: 40-pin connector x 2
Attached file

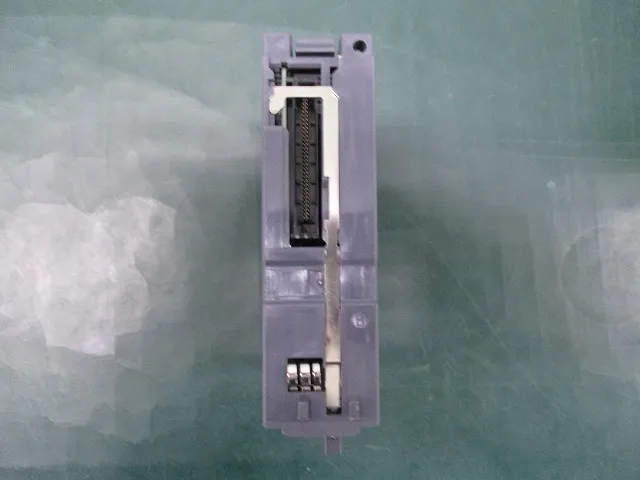

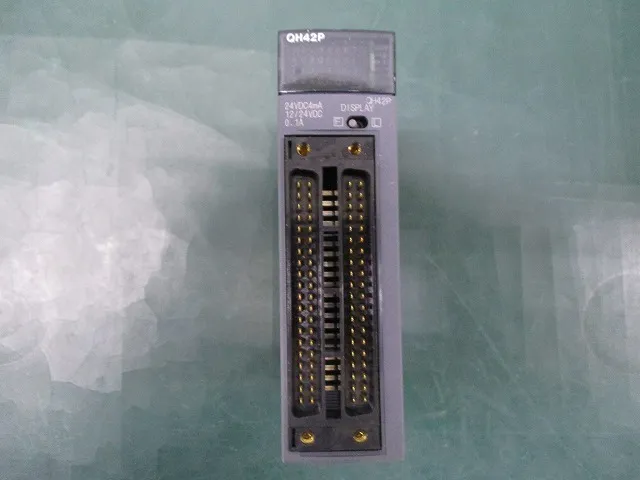

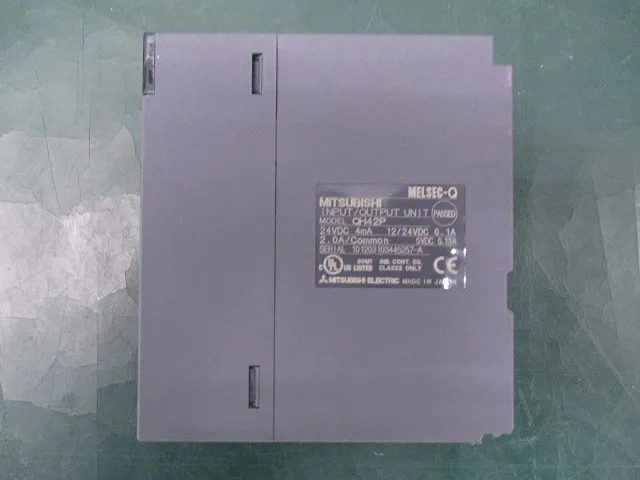

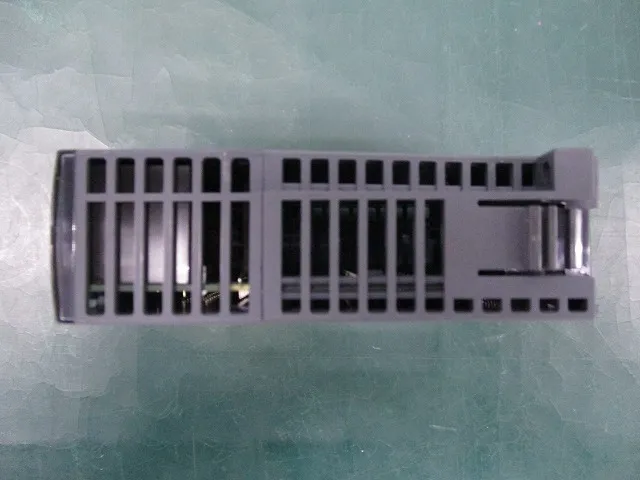

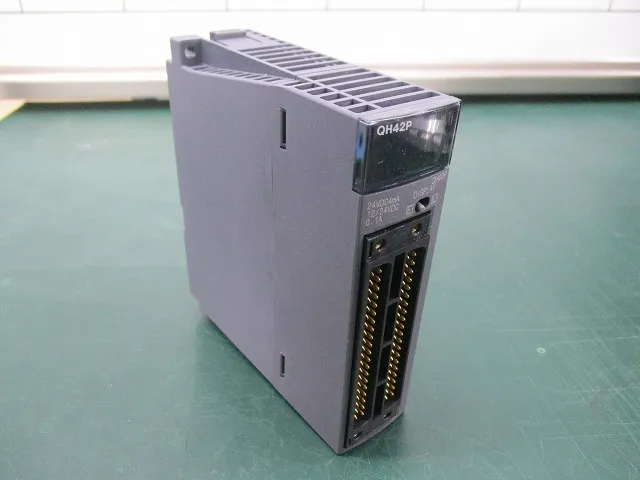

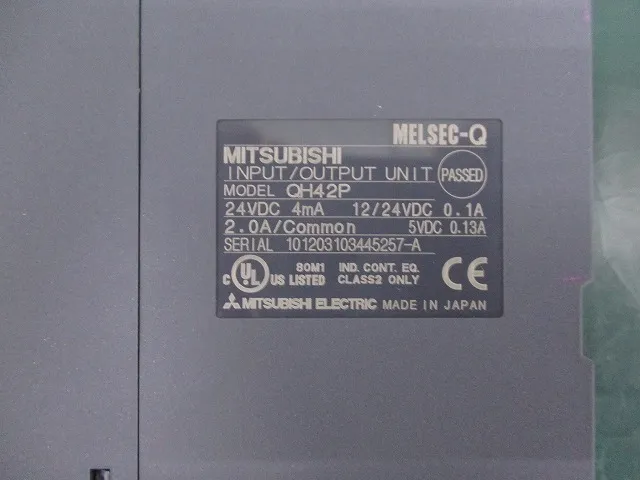

※ Click on the image below to zoom in.
