Sequencer (64 input units) - Mitsubishi Electric A1SX42
Product Specifications
Maker Mitsubishi Electric
Model A1SX42
Category Parts Related
External Dimensions W 35 D 94 H 130
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40928
Product Overview
Mitsubishi Electric A1SX42 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W 35 D 94 H 130. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).
Machine specifications
Input score: 64 points
Rated input voltage: DC 12/24V (ripple rate within 5%) (allowable voltage range DC 10.2~26.4V)
Rated input current: Approximately 2mA (DC12V), approximately 5mA (DC24V)
Maximum simultaneous input points: 50% (at DC24V)
ON voltage/ON current: DC 8V or higher / 2mA
OFF voltage/OFF current: DC4V or less/0.6mA
Input resistance: Approximately 5kΩ
Input response time: 10 msec or less (DC24V)
Input common configuration: 32 points, 1 common
Attached file

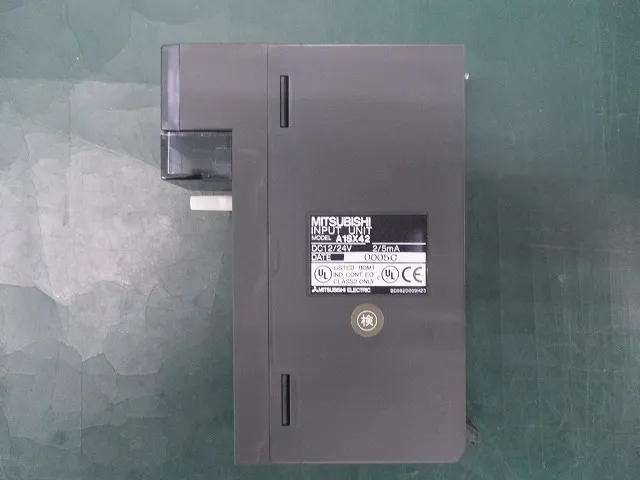

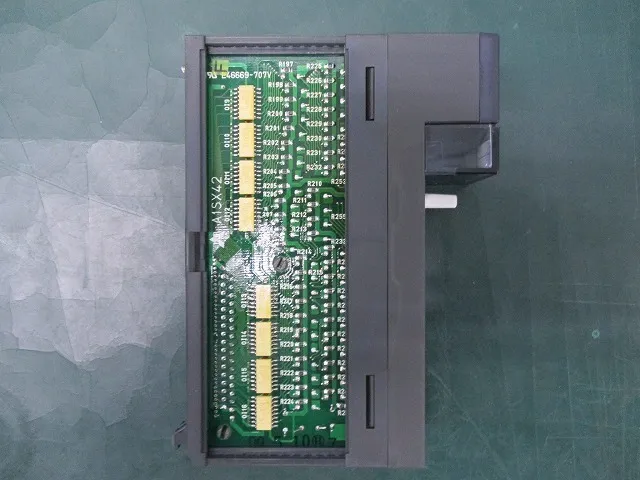

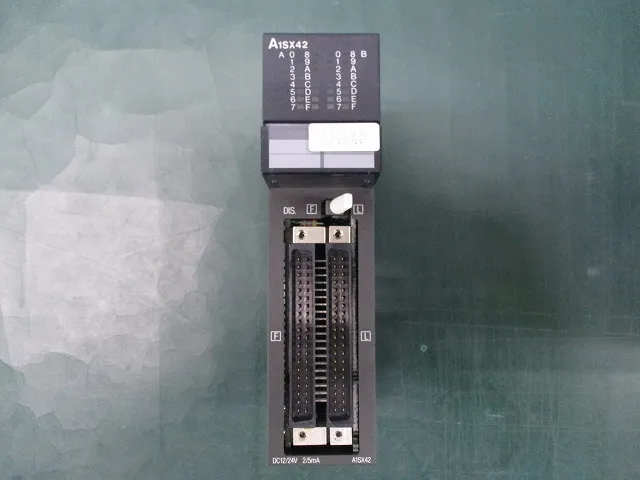

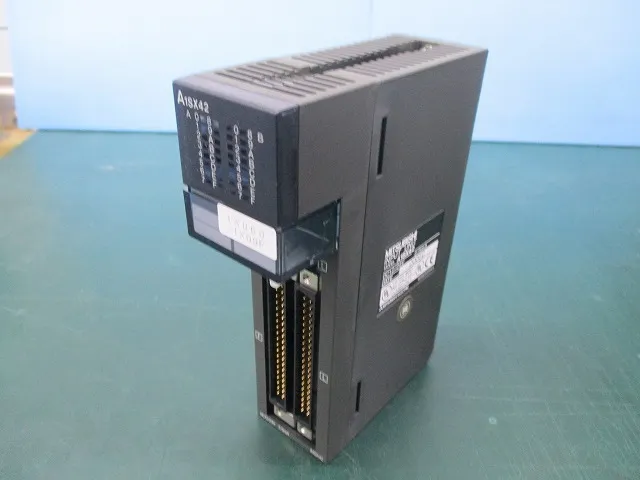

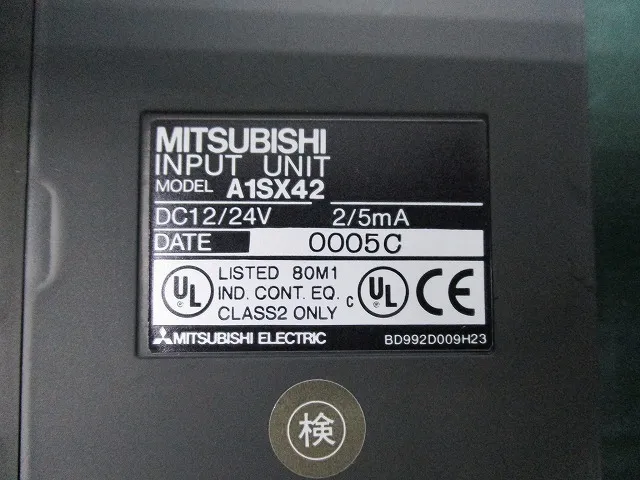

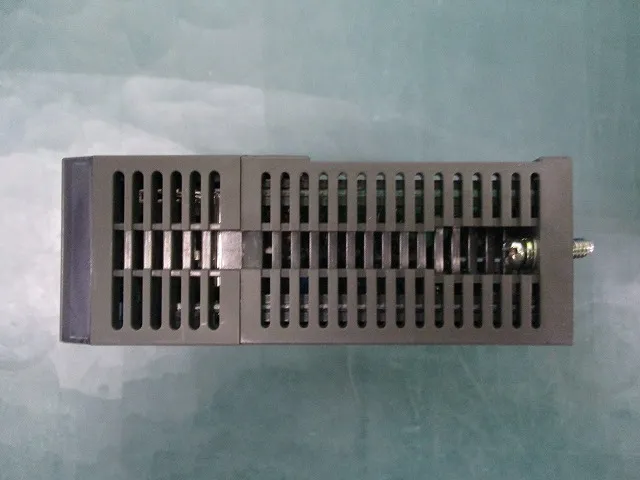

※ Click on the image below to zoom in.
