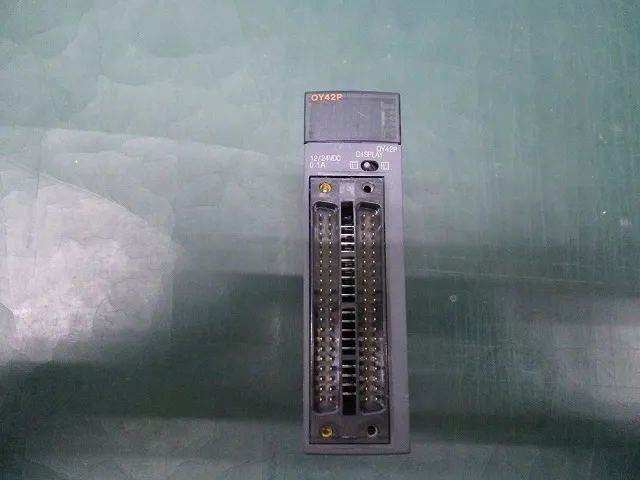

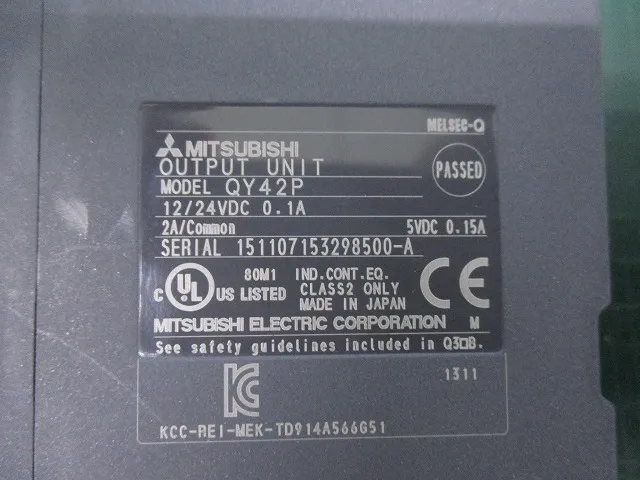

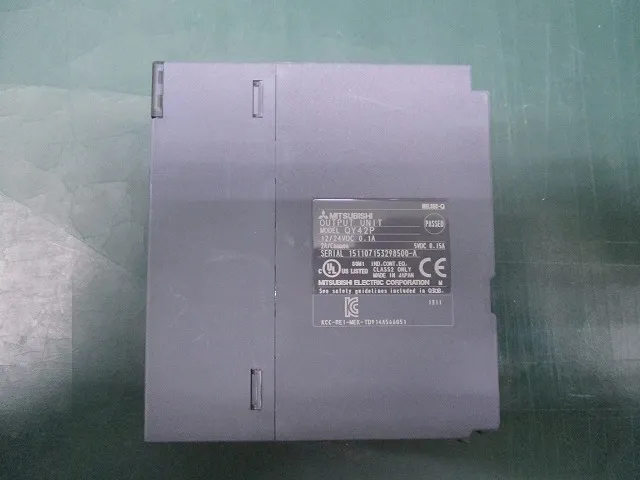

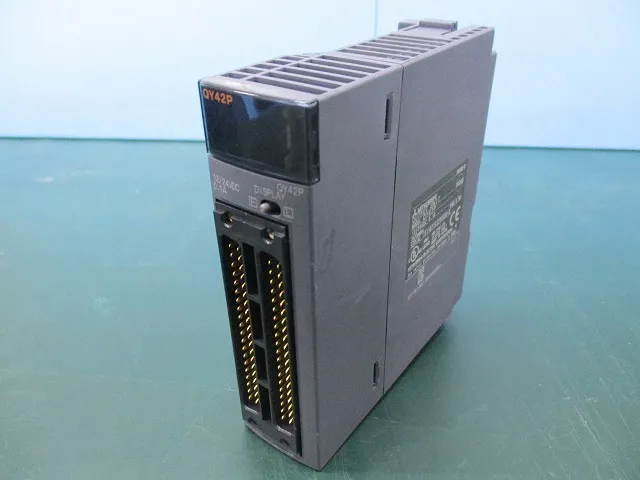

Sequencer (64 output units) - Mitsubishi Electric QY42P
Product Specifications
Maker Mitsubishi Electric
Model QY42P
Category Parts Related
External Dimensions W 28 D 90 H 98
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40963
Product Overview
Mitsubishi Electric QY42P is a used Parts Related item available from ASKINDEX Korea. External dimensions: W 28 D 90 H 98. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).
Machine specifications
Output format: Transistor output (sink type)
Number of output points: 64 points
Rated load voltage: DC 12-24V (+20/-15%)
Maximum load current: 0.1A/point, 2A/common
Output response time: 1 msec or less
Surge killer: Zener diode
External power supply: Voltage DC 12-24V (ripple rate within 5%)
Current: 40mA (at DC24V) / 1 common
Output common configuration: 32 points, 1 common
Operation indicator: LED lights up when ON. 32-point switching display via switch.
External wiring connection method: 40-pin connector x 2
Compatible connectors: A6CON1, A6CON2, A6CON3, A6CON4
Number of occupied input/output points: 64 points
DC5V internal current consumption: 150mA (TYP. All points ON)
