Sequencer (64 input units) - Mitsubishi Electric QX42
Product Specifications
Maker Mitsubishi Electric
Model QX42
Category Parts Related
External Dimensions W 28 D 90 H 98
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40964
Product Overview
Mitsubishi Electric QX42 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W 28 D 90 H 98. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).
Machine specifications
Input format: DC input (positive common type)
Input score: 64 points
Rated input voltage: DC24V (+20/-15%, ripple rate within 5%)
Rated input current: Approximately 4mA
ON voltage/ON current: 19V or higher / 3mA or higher
OFF voltage/OFF current: 11V or less/1.7mA or less
Input resistance: Approximately 5.6kΩ
Input response time
OFF→ON 1ms~70ms or less
ON→OFF 1ms~70ms or less
Input common configuration: 32 points, 1 common
External wiring connection method: 40-pin connector x 2
Compatible connectors: A6CON1, A6CON2, A6CON3, A6CON4
Number of occupied input/output points: 64 points
DC5V internal current consumption: 90mA (TYP. All points ON)

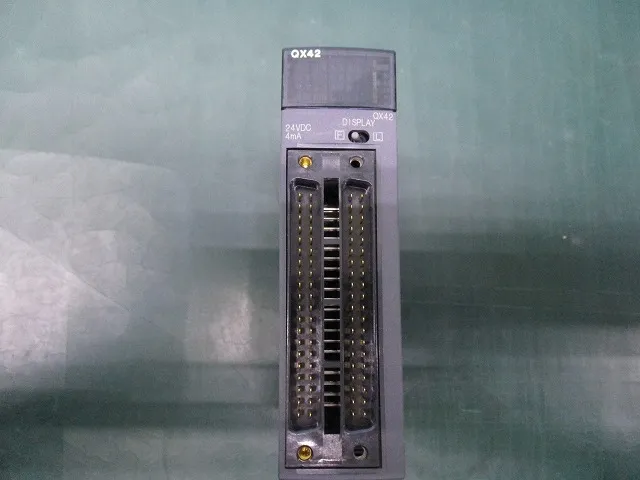

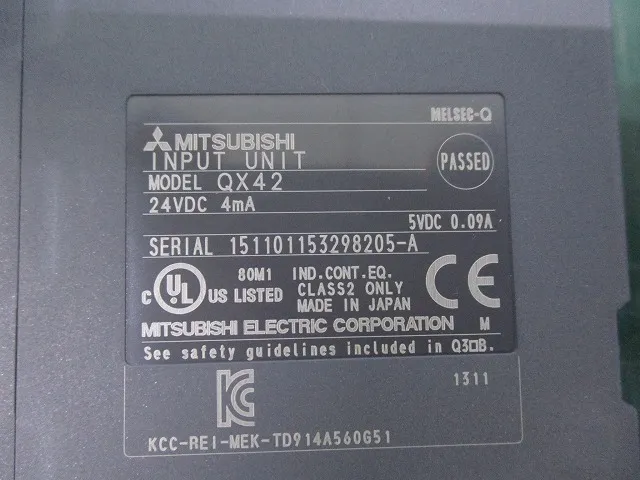

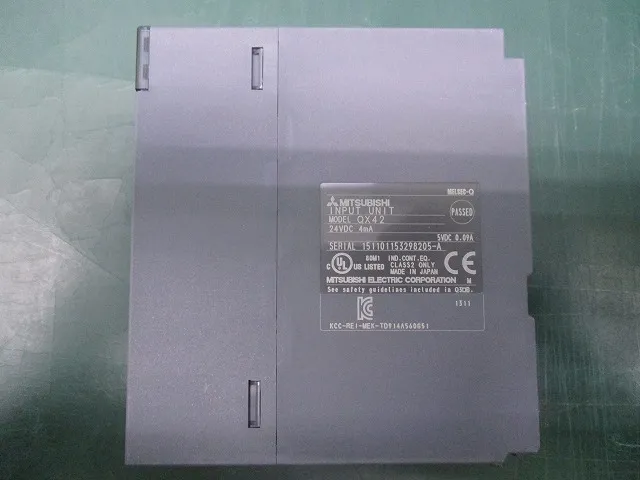

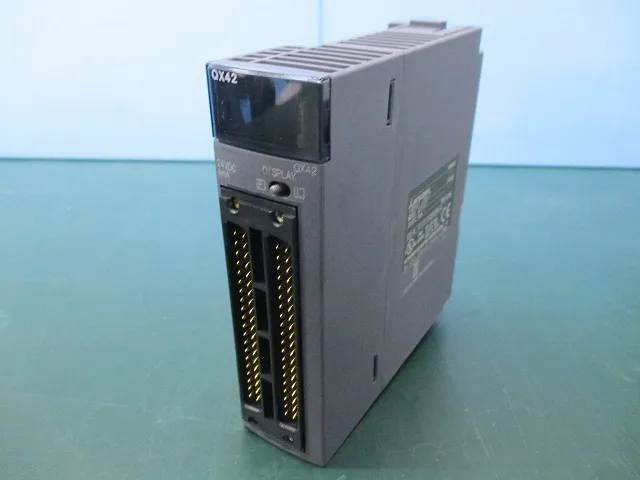

Attached file
