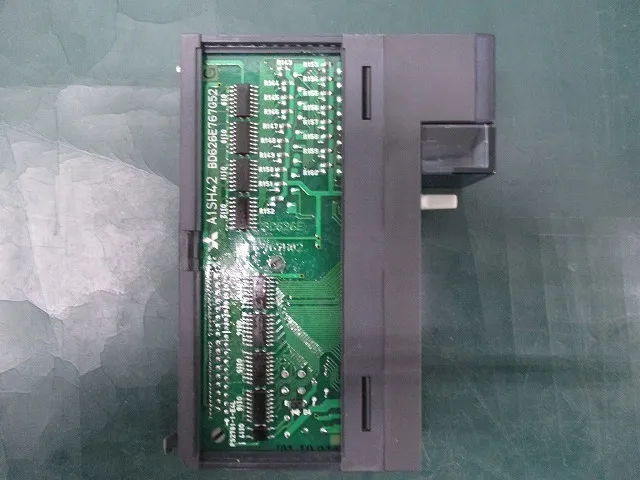

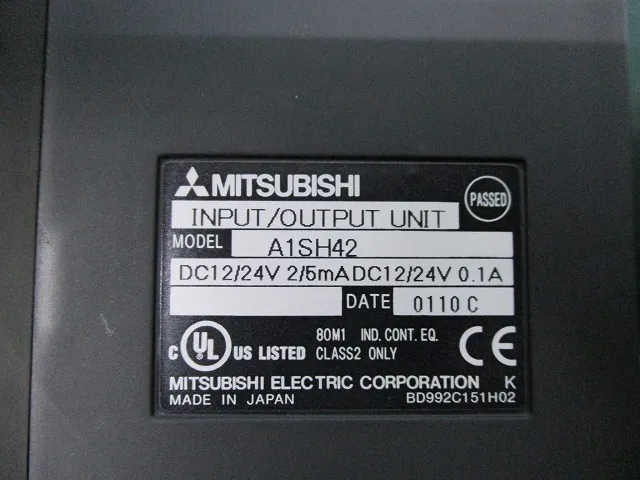

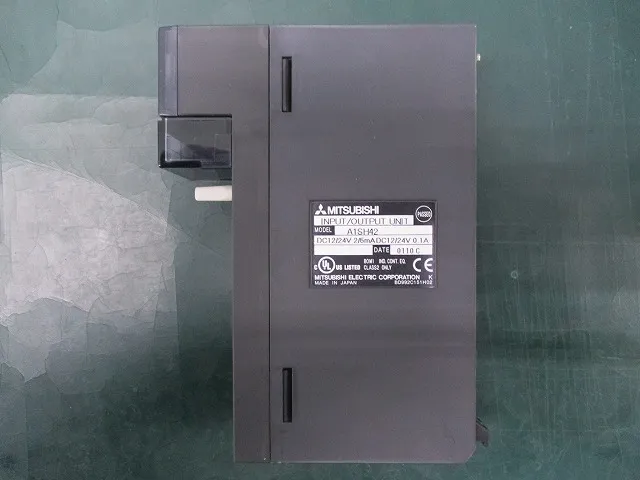

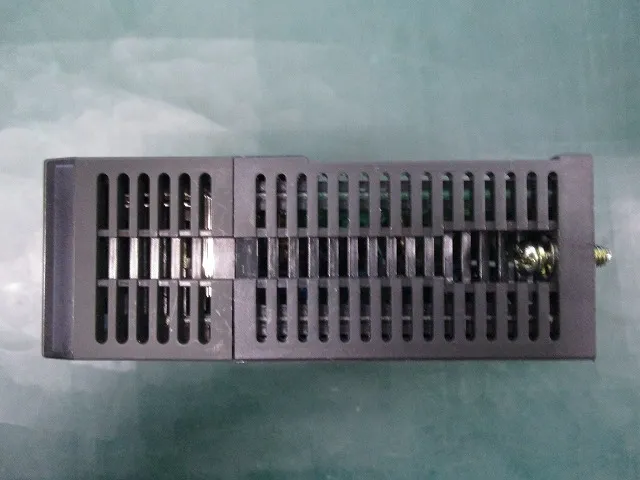

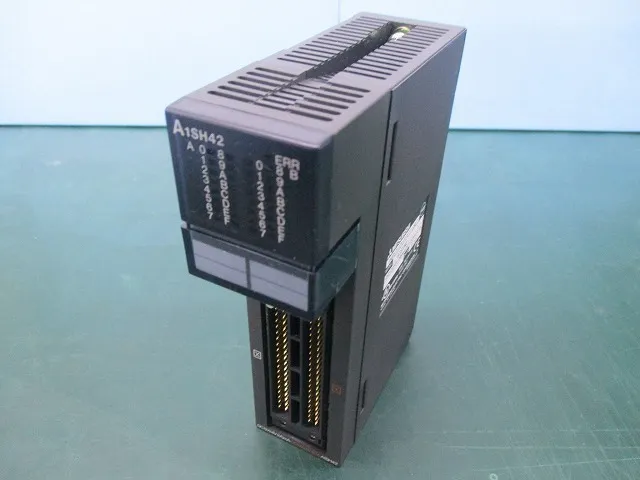

Sequencer (32 input/output units/32 points) - Mitsubishi Electric A1SH42

Machine specifications

Input format: DC input (positive common type)

Input score: 32 points

Rated input voltage: DC 12/24V (ripple rate within 5%) (allowable voltage range: DC 10.2 to 26.4V)

Rated input current: Approximately 2mA (DC12V), approximately 5mA (DC24V)

Maximum simultaneous input points: 60% (at DC24V)

ON voltage/ON current: DC 8V or higher / 2mA or higher

OFF voltage/OFF current: DC4V or less/0.6mA or less

Input resistance: Approximately 5kΩ

Input response time: 10ms or less (DC24V)

Input common configuration: 32 points, 1 common

Input isolation method: Photocoupler isolation

Output format: Transistor output (sink type)

Number of output points: 32 points

Rated load voltage: DC12/24V

Operating load voltage range: DC 10.2 to 30V (peak voltage range DC 30V)

Maximum load current: 0.1A/point, 1.6A/common

Output response time: 2ms or less

Surge killer: Zener diode

External power supply: Voltage DC12/24V (DC10.2~30.0V)

Current: 8mA (TYP. DC24V, per common)

Output common configuration: 32 points, 1 common

Output isolation method: Photocoupler isolation

Common specifications

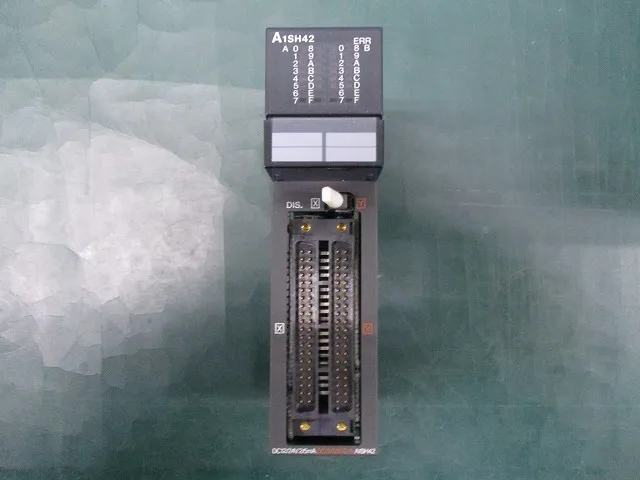

Operation indicator: ON indicator (LED), 32-point switching indicator.

External wiring method: 40-pin connector x 2

Number of occupied input/output points: 32 points

DC5V internal current consumption: 500mA (TYP. All points ON)

Attached file

Product Overview

Mitsubishi Electric A1SH42 is a used Parts Related item handled by ASKINDEX Korea. External dimensions: W 35 D 94 H 130. This listing has sold, but you can ask about restock or a similar unit, and request a quote. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).
