Sequencer (32 input/output units/32 points) - Mitsubishi Electric A1SH42

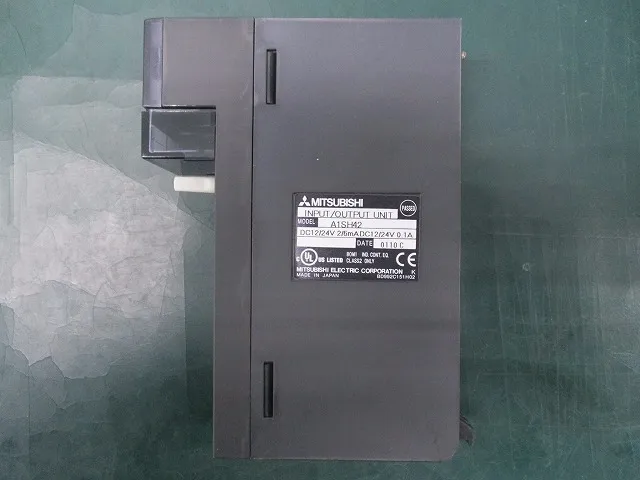

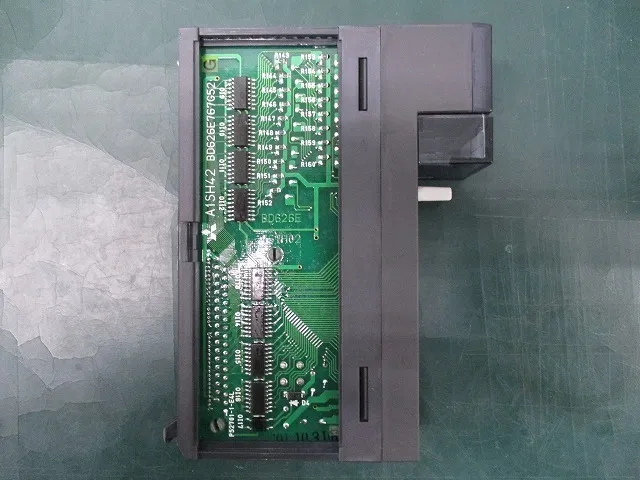

Product Overview

Mitsubishi Electric A1SH42 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W 35 D 94 H 130. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).

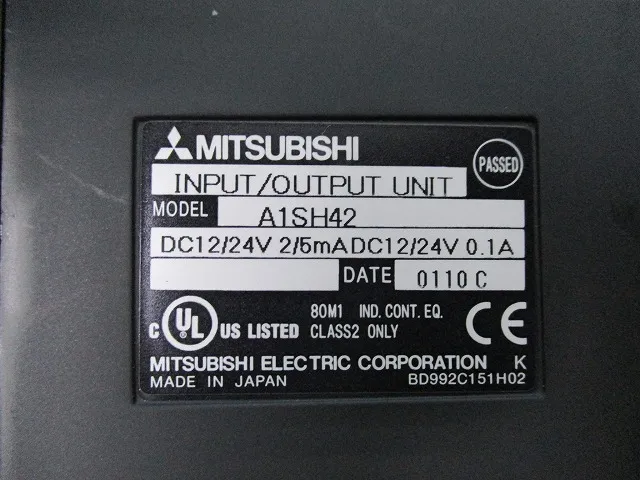

Machine specifications

Input format: DC input (positive common type)

Input score: 32 points

Rated input voltage: DC 12/24V (ripple rate within 5%) (allowable voltage range: DC 10.2 to 26.4V)

Rated input current: Approximately 2mA (DC12V), approximately 5mA (DC24V)

Maximum simultaneous input points: 60% (at DC24V)

ON voltage/ON current: DC 8V or higher / 2mA or higher

OFF voltage/OFF current: DC4V or less/0.6mA or less

Input resistance: Approximately 5kΩ

Input response time: 10ms or less (DC24V)

Input common configuration: 32 points, 1 common

Input isolation method: Photocoupler isolation

Output format: Transistor output (sink type)

Number of output points: 32 points

Rated load voltage: DC12/24V

Operating load voltage range: DC 10.2 to 30V (peak voltage range DC 30V)

Maximum load current: 0.1A/point, 1.6A/common

Output response time: 2ms or less

Surge killer: Zener diode

External power supply: Voltage DC12/24V (DC10.2~30.0V)

Current: 8mA (TYP. DC24V, per common)

Output common configuration: 32 points, 1 common

Output isolation method: Photocoupler isolation

Common specifications

Operation indicator: ON indicator (LED), 32-point switching indicator.

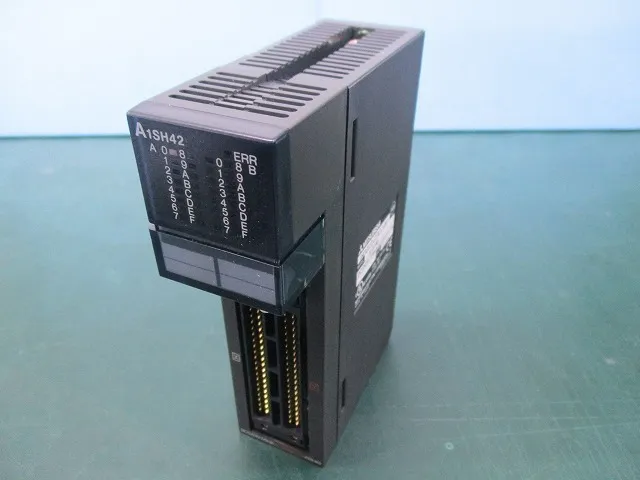

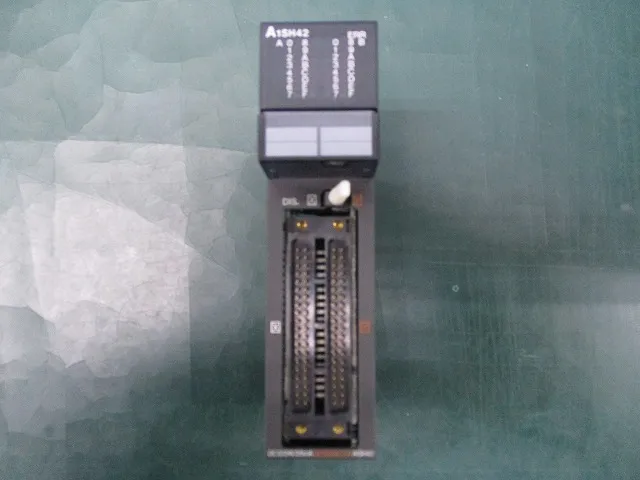

External wiring method: 40-pin connector x 2

Number of occupied input/output points: 32 points

DC5V internal current consumption: 500mA (TYP. All points ON)
