Sequencer (analog output unit) - Omron CS1W-DA08V
Product Specifications
Maker Omron
Model CS1W-DA08V
Category Parts Related
External Dimensions W 35 D 126 H 130
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40982
Product Overview
Omron CS1W-DA08V is a used Parts Related item available from ASKINDEX Korea. External dimensions: W 35 D 126 H 130. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Omron) and the same category (Parts Related).
Machine specifications
Convert binary data to an analog output signal.
Applicable PLC: CS1 series
Isolation method: Photocoupler isolation between input/output and PLC signals (non-isolated between each input/output)
External connection terminals: 21 detachable terminals (M3 screws)
Time impact on CPU unit cycle time: 0.2ms
Internal current consumption: DC5V: 130mA or less, DC26V: 180mA or less
Number of analog outputs: 8
Output signal range: 1-5V, 0-5V, 0-10V, -10-+10V
External output impedance: Voltage output 0.5Ω or less
Maximum external output current (per point): Voltage output 12mA
Maximum allowable load resistance: 600Ω (current output)
Resolution: 4000 (full scale)
Configuration data: 16-bit binary data
Overall accuracy 23±2℃: Voltage output ±0.3% / Current output ±0.5%
D/A conversion time: 1.0ms or less per point
Attached file

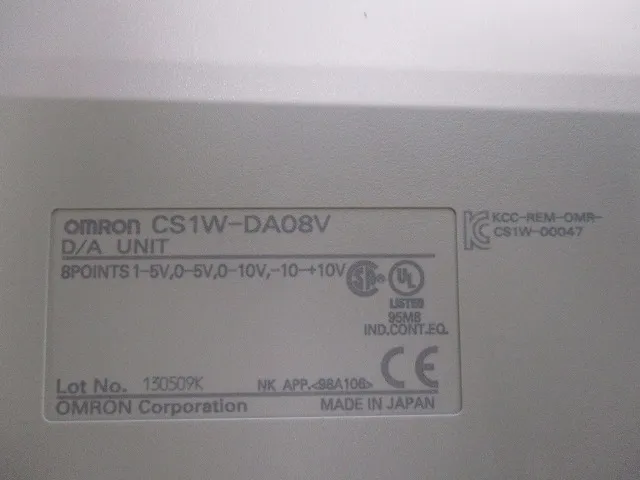

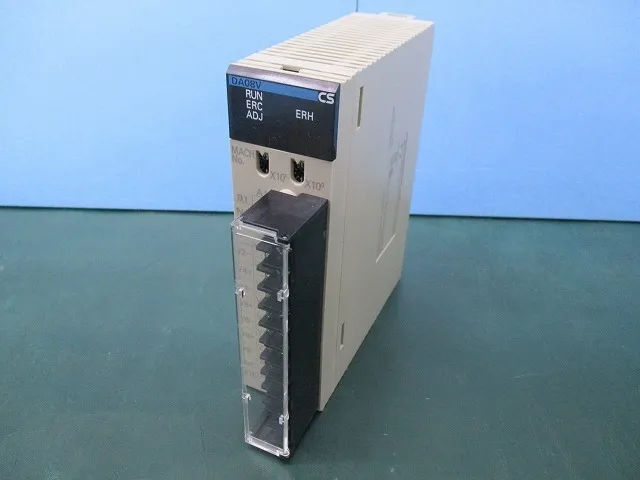

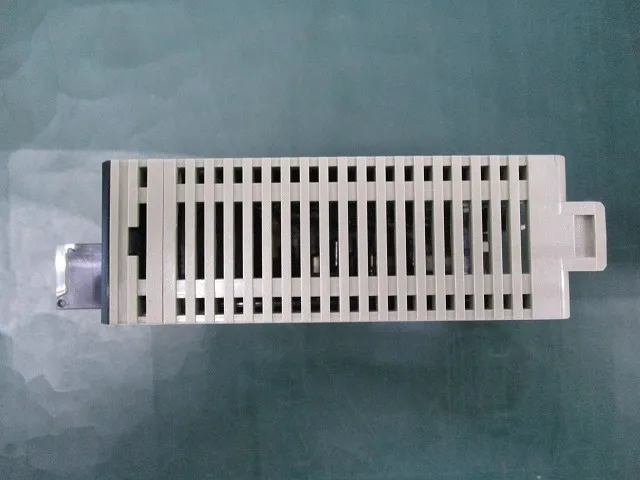

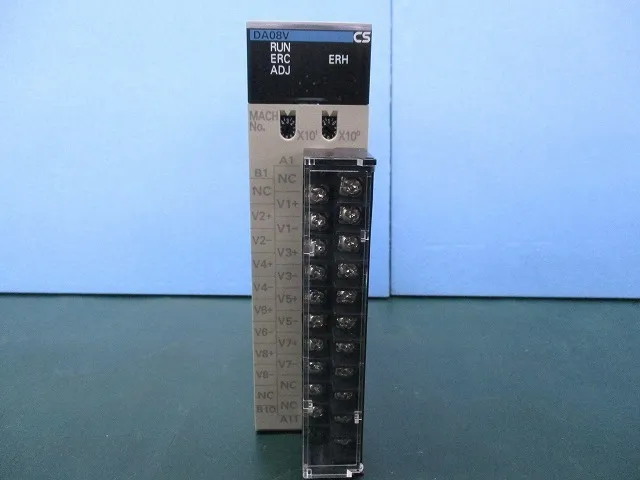

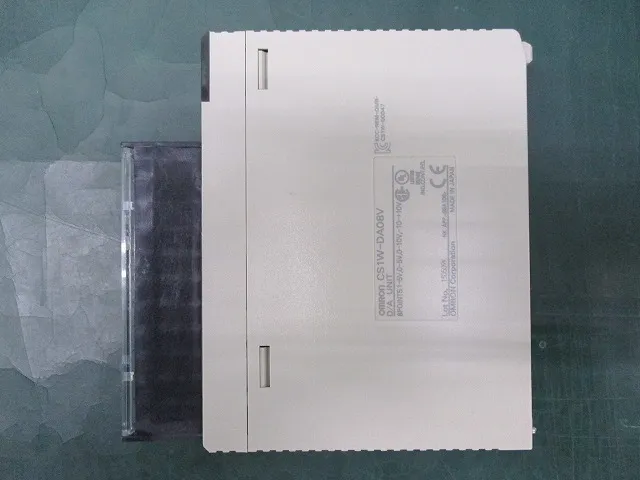

※ Click on the image below to zoom in.
