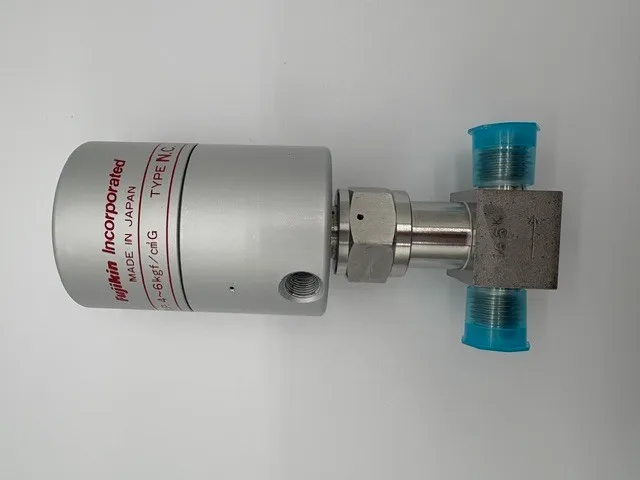

Pneumatic cylinder type high-pressure bellows valve - Fujikin FPR-UBF-716-6.35
Product Specifications
Maker Fujikin
Model FPR-UBF-716-6.35
Category Parts Related
External Dimensions W=58 D=50 H=120 mm
Condition Used
Showroom Information
Exhibition hall etc
Price & Inquiry
price Price Inquiry
Inquiry Number Q41074
Product Overview
Fujikin FPR-UBF-716-6.35 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W=58 D=50 H=120 mm. It is kept in stock at our etc showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Fujikin) and the same category (Parts Related).
Machine specifications
Nominal diameter: 6.35mm (1/4 inch OD)
• Maximum operating pressure: 16.2 MPa
Operating pressure: 0.39–0.59 MPa
• Operating mode: Normally closed (NC)
• Maximum Cv value: 0.3
• Connection method: UJR joint
Connection type: UJR male on both ends
• Pipe connection diameter: 1/4 OD
• Operating pressure connection port: Rc 1/8
Attached file
※ Click on the image below to zoom in.
