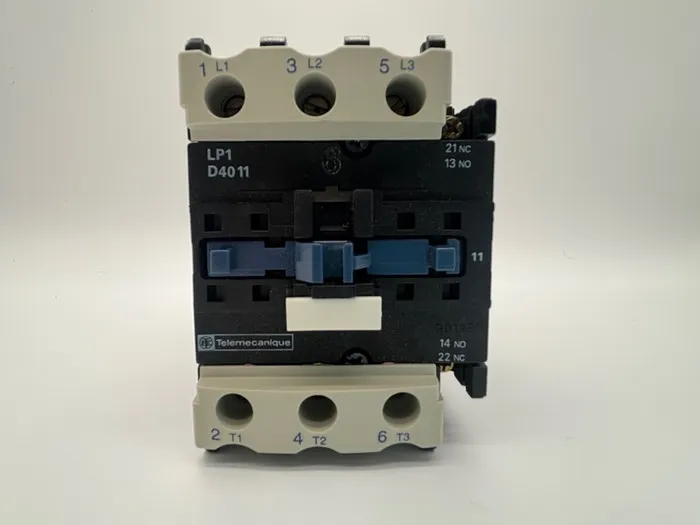

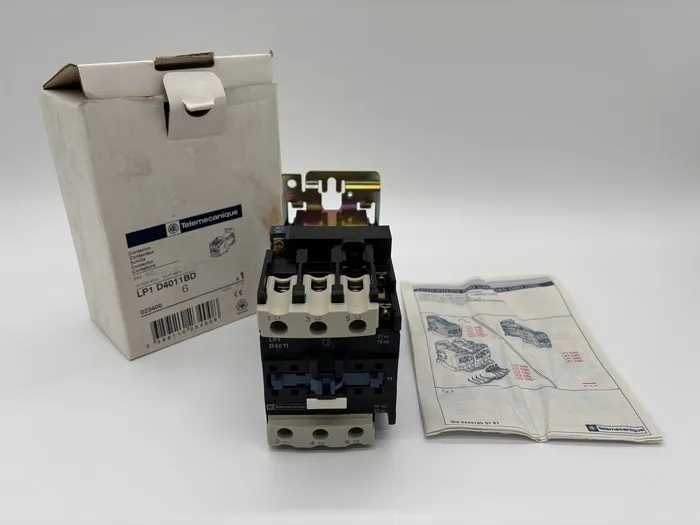

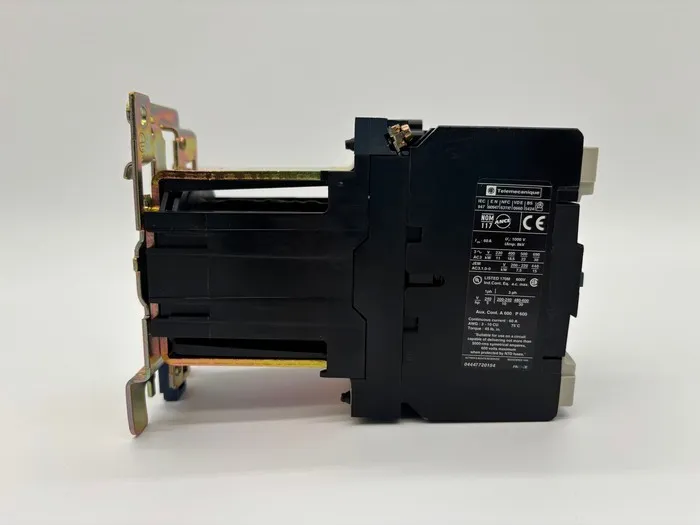

electromagnetic contactor - Telemechanics LP1 D4011BD
Product Specifications
Maker Telemechanics
Model LP1 D4011BD
Category Parts Related
External Dimensions 170×750×125
Condition Used
Showroom Information
Exhibition hall etc
Price & Inquiry
price Price Inquiry
Inquiry Number Q41225
Product Overview
Telemechanics LP1 D4011BD is a used Parts Related item available from ASKINDEX Korea. External dimensions: 170×750×125. It is kept in stock at our etc showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Telemechanics) and the same category (Parts Related).
Machine specifications
Number of poles: 3 poles (for 3 phases) Operating coil voltage: DC 24V Rated current (Ith): 60A Rated operating current (AC-3): 40A (mainly reference current when controlling motors) Applicable motor capacity (AC-3): 200-220V: 11 kW 380-440V: 18.5 kW Auxiliary contact configuration: 1 NO + 1 NC (1 normally open contact, 1 normally closed contact built-in) Main terminal/Auxiliary terminal screws: M6 (main terminal) / M3.5 (operating/auxiliary terminal) Mounting method: 35mm DIN rail mounting or screw fastening
