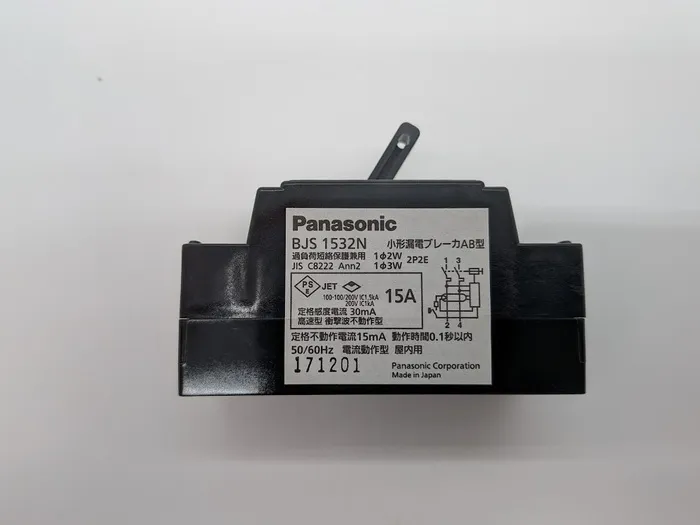

Earth leakage circuit breaker - Panasonic BJS1532N
Product Specifications
Maker Panasonic
Model BJS1532N
Category Parts Related
External Dimensions 70ｘ35ｘ55
Condition Used
Showroom Information
Exhibition hall etc
Price & Inquiry
price Price Inquiry
Inquiry Number Q41446
Product Overview
Panasonic BJS1532N is a used Parts Related item available from ASKINDEX Korea. External dimensions: 70ｘ35ｘ55. It is kept in stock at our etc showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Panasonic) and the same category (Parts Related).
Machine specifications
Rated current 15A
Rated sensitivity current: 30mA (high sensitivity)
Operation time: within 0.1 seconds
Number of poles: 2P2E (compatible with single-phase 2-wire/single-phase 3-wire)
Rated voltage: 100V / 100-200V
Short-circuit breaking capacity: 1.5kA (100V system) / 1kA (200V system)
Frequency: 50/60Hz
Indoor use
