DC motor - ESCAP 422E-204-2
Product Specifications
Maker ESCAP
Model 422E-204-2
Category Parts Related
External Dimensions W100×D35×H35
Condition Used
Showroom Information
Exhibition hall etc
Price & Inquiry
price Price Inquiry
Inquiry Number Q41472
Product Overview
ESCAP 422E-204-2 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W100×D35×H35. It is kept in stock at our etc showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (ESCAP) and the same category (Parts Related).
Machine specifications
Voltage (rated): 24V
No-load rotational speed: 5,000–7,000 rpm
No-load current 50-150 mA
Maximum efficiency point torque: 40–80 mNm
Continuous torque: 20–40 mNm
Shaft diameter 4mm
Attached file

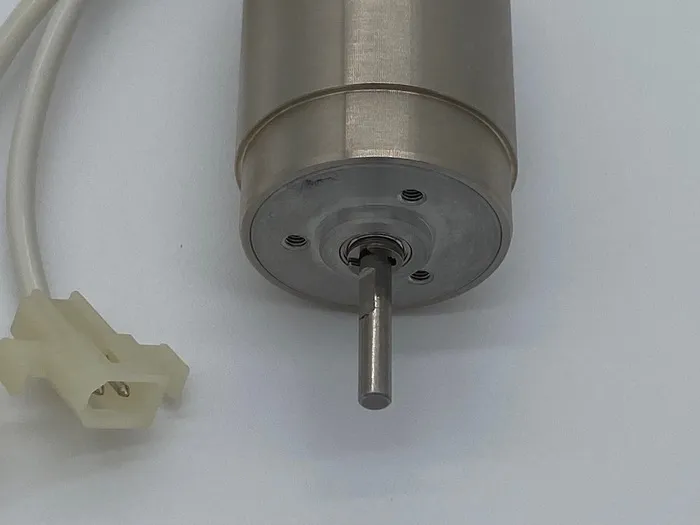

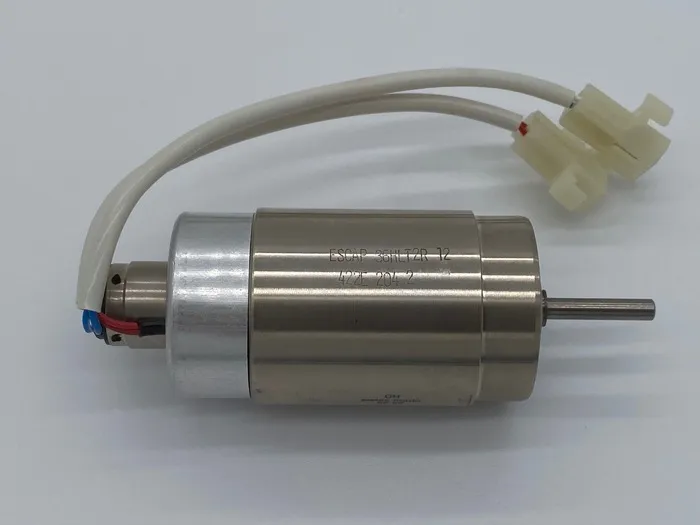

※ Click on the image below to zoom in.
