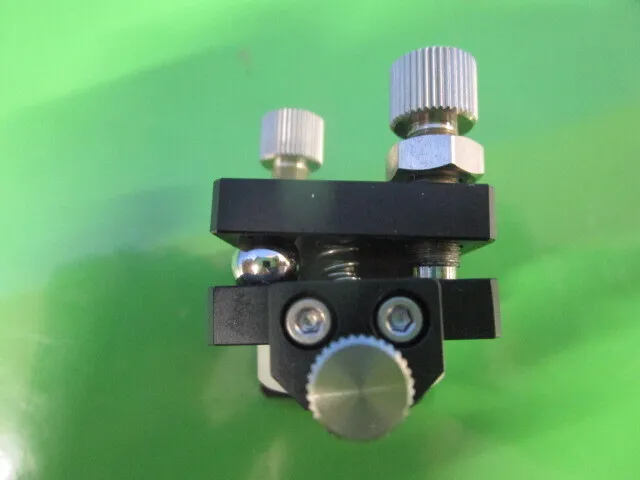

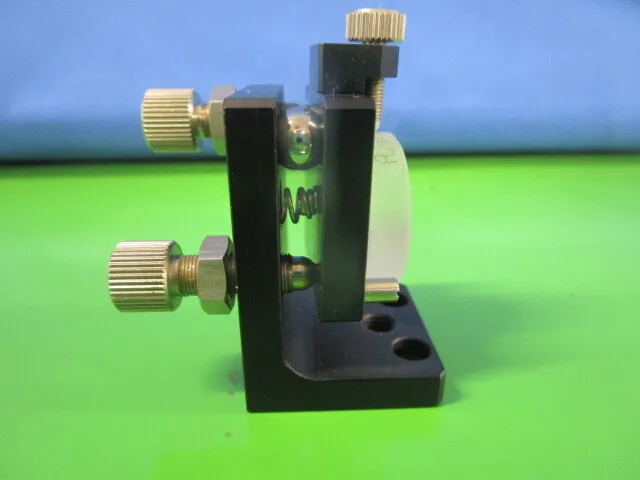

Mirror holder (kinematic type) - Suruga Seiki F58N-30-2
Product Specifications
Maker Suruga Seiki
Model F58N-30-2
Category R&D of Physical ・ Chemical Equipment
External Dimensions W30 D45 H55
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q50025
Product Overview
Suruga Seiki F58N-30-2 is a used R&D of Physical ・ Chemical Equipment item available from ASKINDEX Korea. External dimensions: W30 D45 H55. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Suruga Seiki) and the same category (R&D of Physical ・ Chemical Equipment).
Machine specifications
Mirror mounting: 3-point support
Rod: None
Holder height H [mm]: 30
Usable mirror diameter [φmm]: 20-30
Mirror thickness used [mm]: 5~
Adjustment axis: θy θz axis
Feed method [feed screw P=mm]: 0.5
Resolution [°/rotation]: 1.4
Displacement [±°]: 5
Main material - Surface treatment: Aluminum - Black anodized finish
Attached file
※ Click on the image below to zoom in.
