Speed Control Pack - Oriental Motor SS301N-K2
Product Specifications
Maker Oriental Motor
Model SS301N-K2
Category Parts Related
Model year 2012
External Dimensions W 35 D 115 H 135
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q51029
Product Overview
Oriental Motor SS301N-K2 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W 35 D 115 H 135. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Oriental Motor) and the same category (Parts Related).
Machine specifications

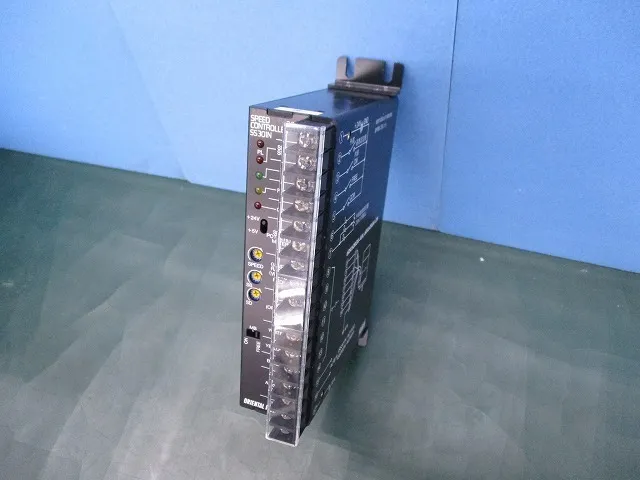

Speed control pack (contactless type)
Input voltage: Single-phase 100V ±10%
Power frequency: 50/60Hz

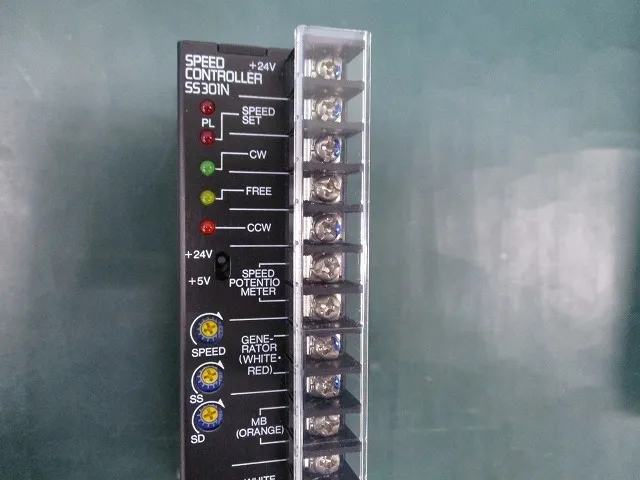

How to set the rotation speed:
① Setting using the internal speed setting device
② Setting using an external speed setting device (20kΩ, 1/4W)
③ Setting by external DC voltage: DC 0-5V

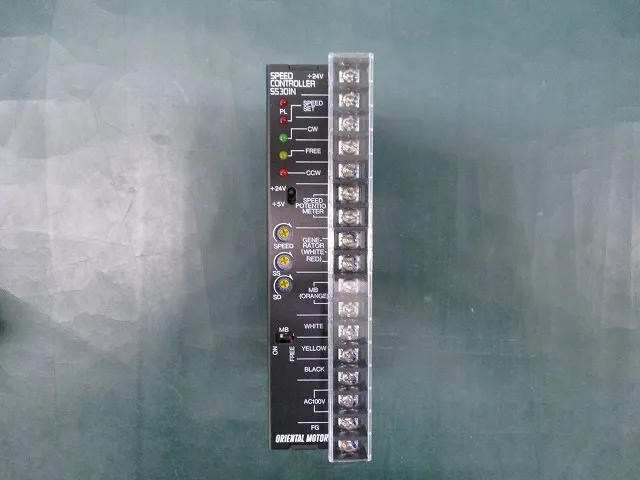

Functions: Speed control, contactless instant stop, contactless forward/reverse rotation, contactless rotation speed switching, slow start/slow down, electromagnetic brake/electronic brake interlock, contactless electromagnetic brake control, electromagnetic brake free
Damping current duration: 0.2–0.4 sec
Damping current (peak value): 50Hz 24.0A, 60Hz 20.0A
Attached file
※ Click on the image below to zoom in.
