Stepping motor driver - Oriental Motor ASD24A-A
Product Specifications
Maker Oriental Motor
Model ASD24A-A
Category Parts Related
External Dimensions W 45 D 135 H 150
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q51030
Product Overview
Oriental Motor ASD24A-A is a used Parts Related item available from ASKINDEX Korea. External dimensions: W 45 D 135 H 150. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Oriental Motor) and the same category (Parts Related).
Machine specifications
Driver type: Pulse train input type
Input voltage: Single-phase AC 100-115V 50/60Hz
Speed and position control command: pulse train input
Maximum input pulse frequency: 250kHz (at 50% duty cycle)
Protection functions: Overheating protection, overload protection, overvoltage protection, speed difference abnormality protection, overcurrent protection, excessive speed, EEPROM data error, sensor error, system error
Attached file

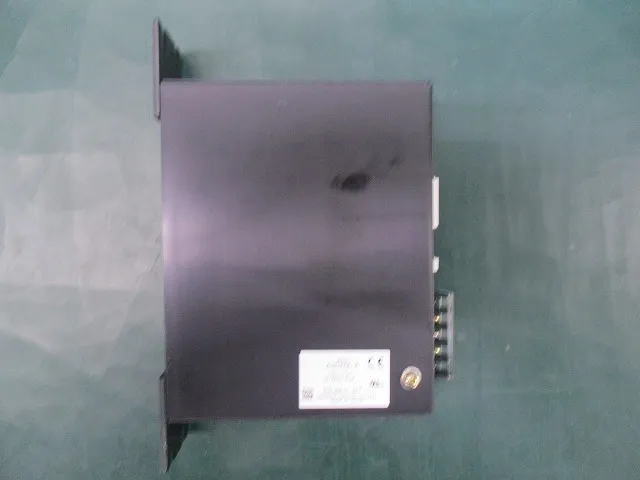

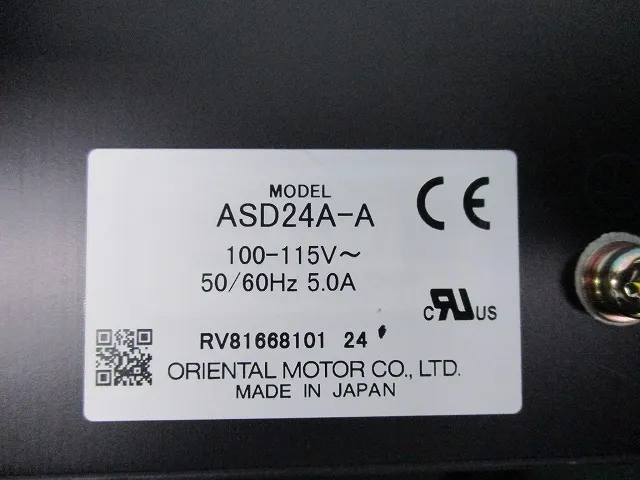

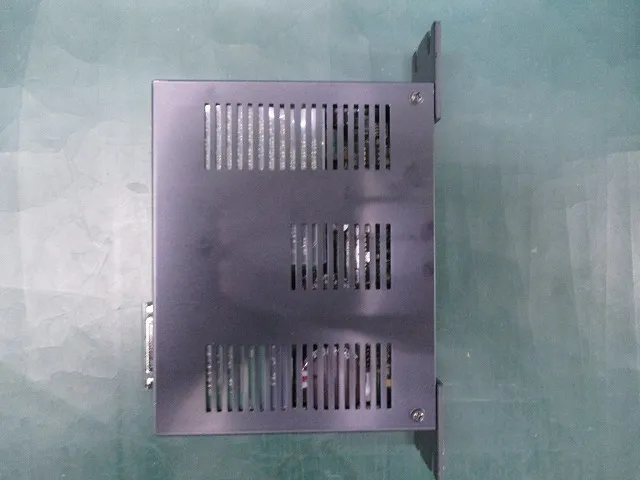

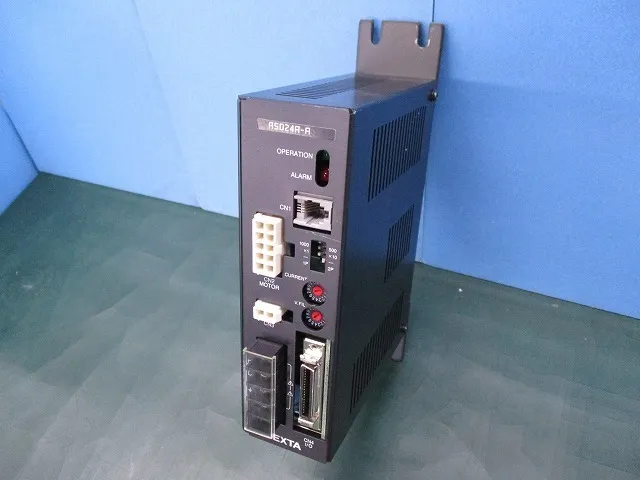

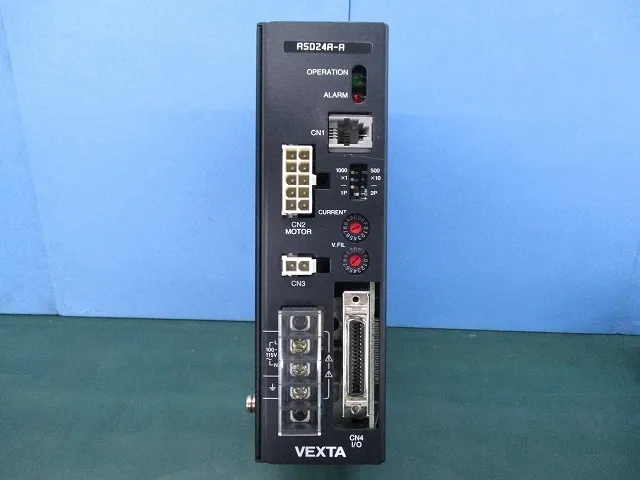

※ Click on the image below to zoom in.
