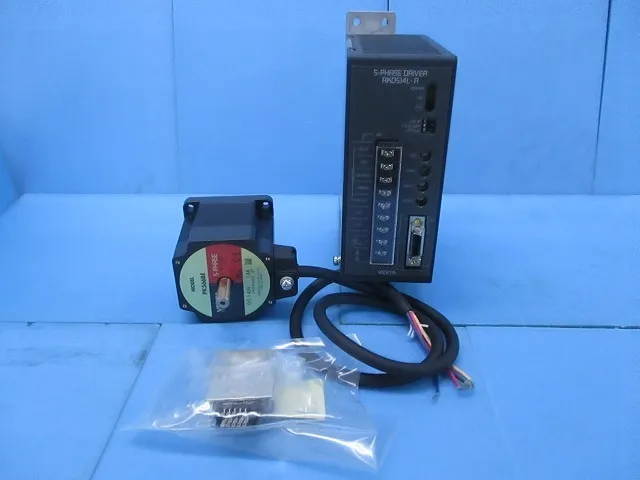

Stepping motor unit - Oriental Motor RK566BAE
Product Specifications
Maker Oriental Motor
Model RK566BAE
Category Parts Related
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q63092
Machine specifications
*Unused item
Power supply: Single-phase 100V 50/60Hz 4.5A
Mounting angle dimensions: 60mm
Type: PL geared

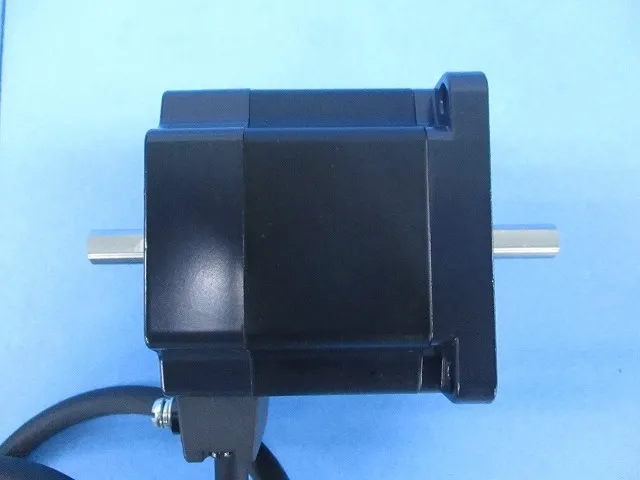

Shaft type: Double shaft
Electromagnetic brake: None
Maximum static excitation torque: 3.5 N・m
Reduction ratio: 5
Basic step angle: 0.144°
Allowable torque: 3.5 N・m
Allowable speed range: 0–360 r/min
Backlash: 0.33°
Excitation method: Microstepping
Rated current: 1.4A/phase
Speed and position control command: pulse train input
Maximum input pulse frequency: 200kHz (at 50% duty cycle)

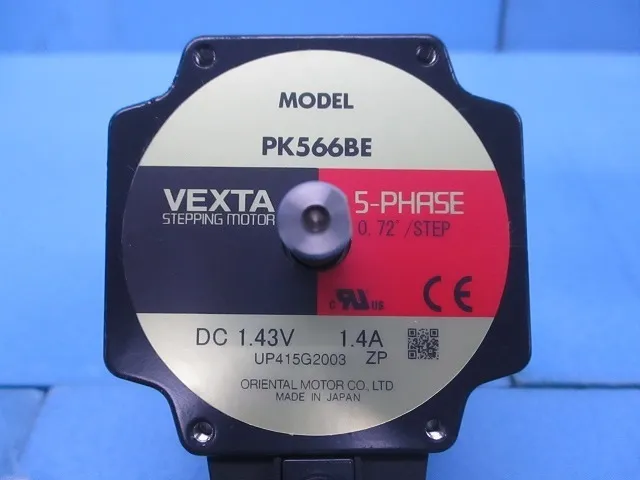

Motor model: PK566BE

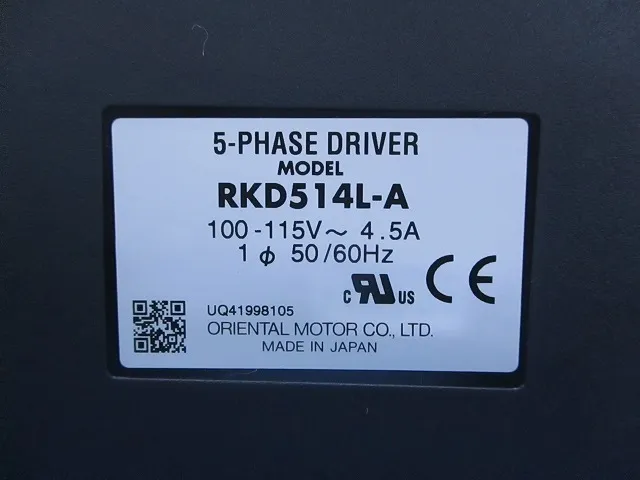

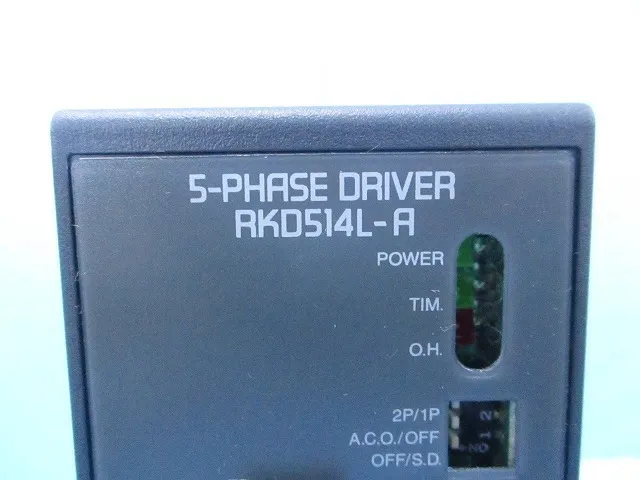

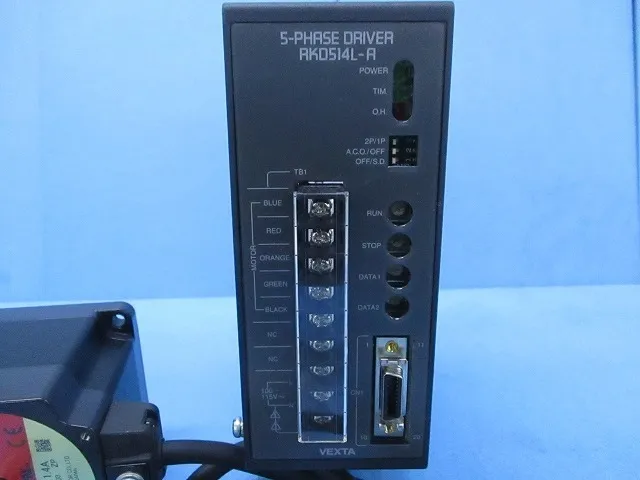

Controller model: RKD514L-A
Attached file
Product Overview
Oriental Motor RK566BAE is a used Parts Related item available from ASKINDEX Korea. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Oriental Motor) and the same category (Parts Related).
※ Click on the image below to zoom in.
