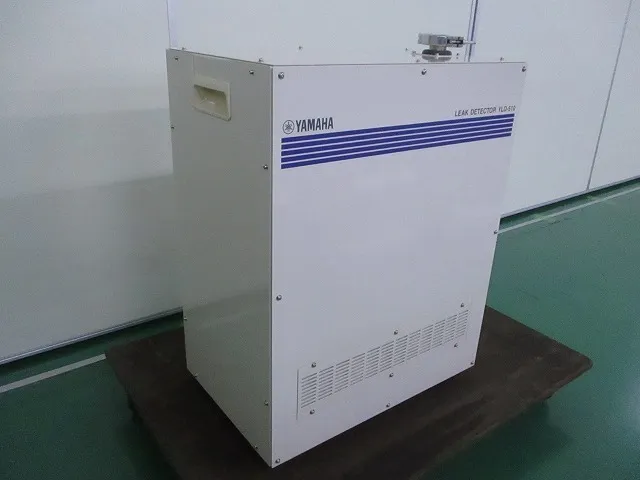

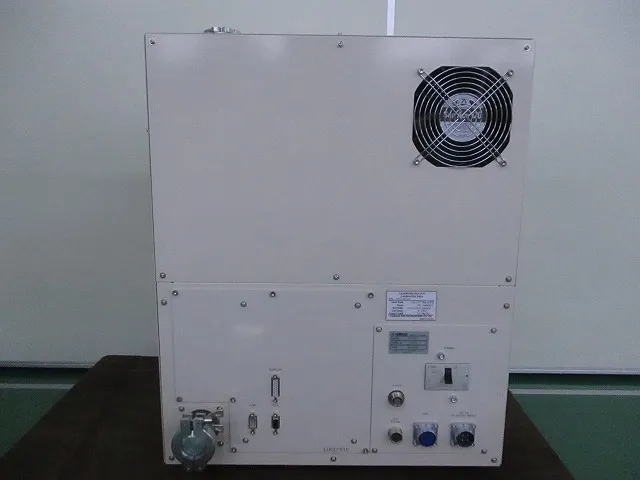

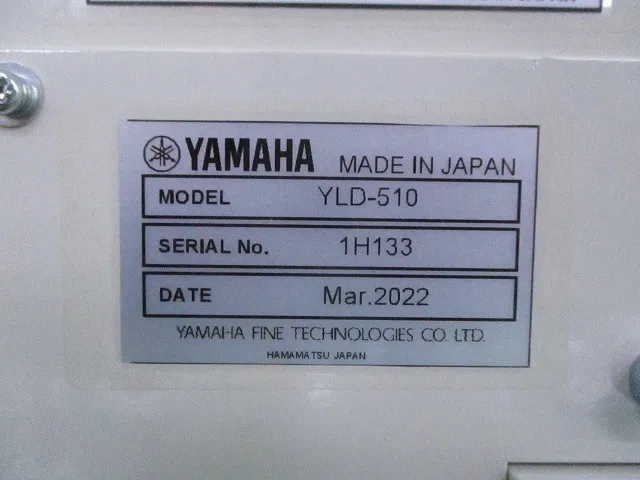

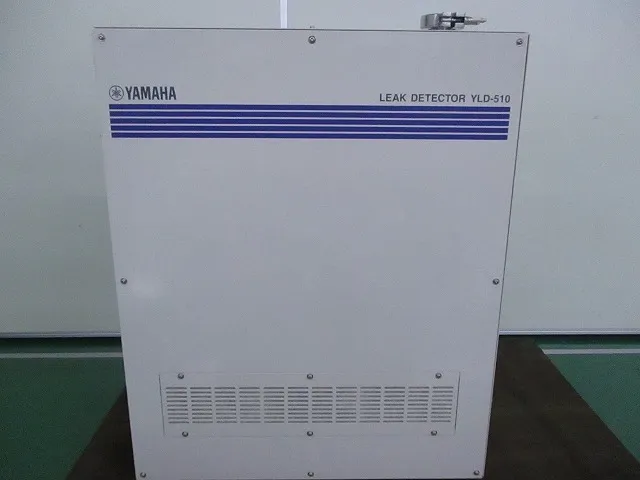

Helium leak detector - Yamaha YLD-510
Product Specifications
Maker Yamaha
Model YLD-510
Category Parts Related
Model year 2022
External Dimensions W291 D456 H574
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q63115
Machine specifications
*Unused item
Power supply: three phase 200V 800VA
Detection method: 180 degree magnetic field deflection type mass spectrometry
Filaments: 2 yttria-coated iridium filaments
Minimum detectable leak rate: 1.0 × 10⁻⁹ Pa・m³/sec
Measurement range: 10⁻⁹ to 10⁻² Pa・m³/sec
Maximum inlet pressure: 100 Pa

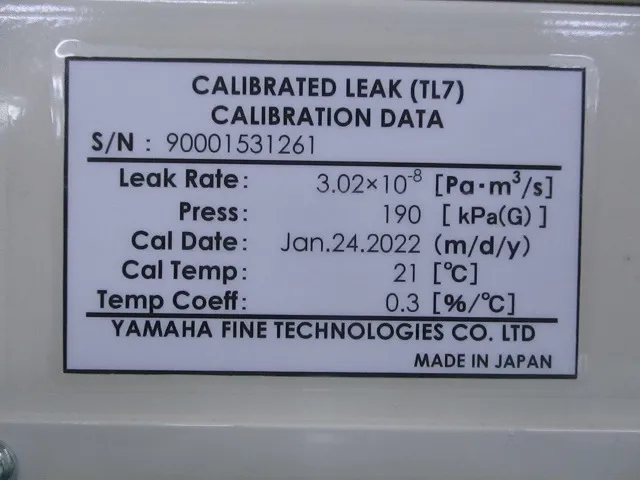

Calibration: Internal calibration
Startup time: 5 min
Operating temperature range: 10 to 40°C
Humidity: 80%
Input/Output Signal: Test Output DC 0-6.99V
*Main unit only (accessories included)
Attached file
Product Overview
Yamaha YLD-510 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W291 D456 H574. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Yamaha) and the same category (Parts Related).
