Bellows Pump - Iwaki FA-2-1
Product Specifications
Maker Iwaki
Model FA-2-1
Model year
External Dimensions
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number UD2E53
Mechanical Specifications
Maximum discharge rate: 2 L/min. (clean water, room temperature) Maximum stroke speed: 150 spm Self-priming capacity: 1 m Liquid temperature range: 5 to 100°C Maximum supply air pressure: 0.392 MPa Wetted parts material: PFA, PTFE Pump connection size: Rc 1/8 Air supply connection size: Rc 1/4" Maximum air consumption: 5 N/min.
Attachments

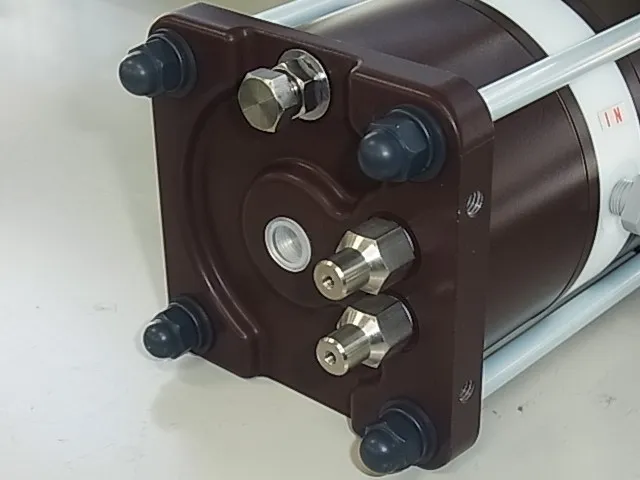

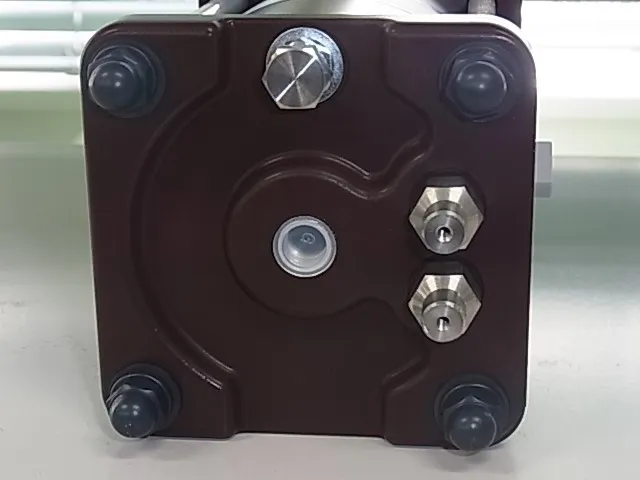

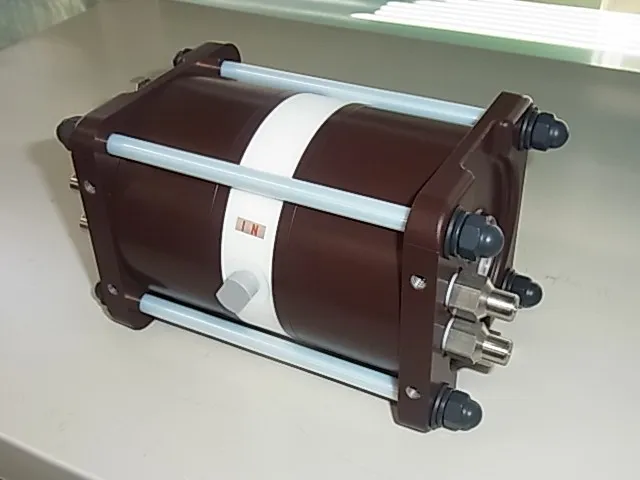

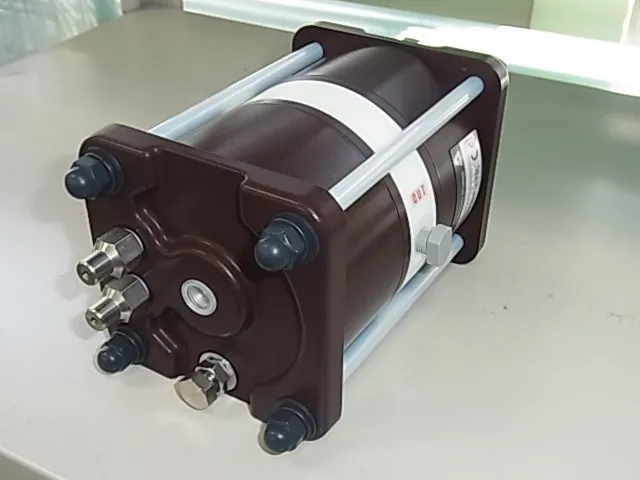

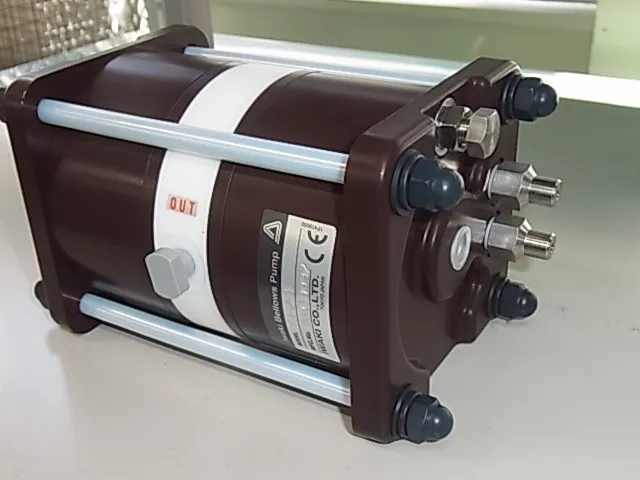

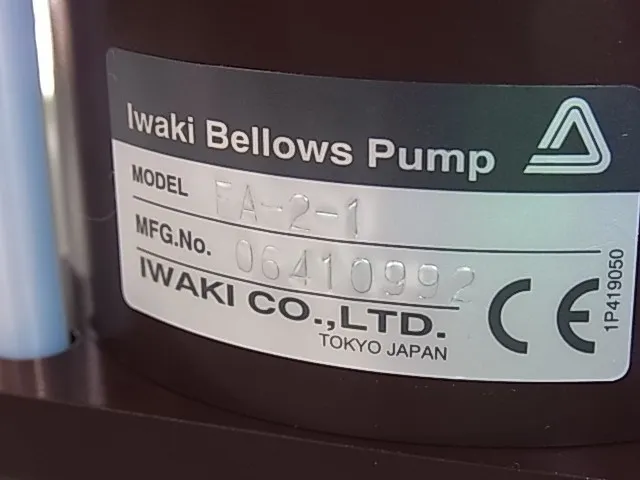

※ Click on the image below to zoom in.
